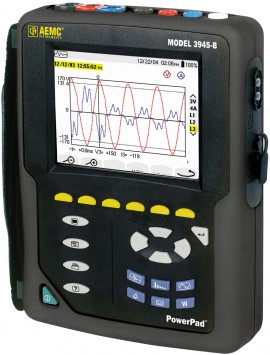

AEMC 3945-B PowerPad Power Quality Analyzer Kit with 3x MN93 Clamp-on CT (240A)

Model: 3945-B w/3 MN93 | Order No: 2130.75

AEMC 3945-B PowerPad Power Quality Analyzer Kit with 3x MN93 Clamp-on CT (240A)-

AEMC 3945-B PowerPad Power Quality Analyzer Kit with 3x MN93 Clamp-on CT (240A)

Model: 3945-B w/3 MN93 | Order No: 2130.75

PowerPad Model 3945-B with 3 MN93 (200A).

PowerPad Model 3945-B with 3 MN93 (200A).

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

AEMC 8333 True RMS Power Quality Analyzer with three current probes, three-phase, 40 to 69 Hz-

AEMC 8333 True RMS Power Quality Analyzer with three current probes, three-phase, 40 to 69 Hz

Model: 8333 w/3 MN193-BK | Order No: 2136.12

Easy to use, compact, and shock resistant, this three-phase power quality analyzer allows technicians and engineers to measure and carry out diagnostics and power quality work on single- or three-phase networks. In addition, this three-phase power quality analyzer comes with three MN193 current probes.

Learn More

AEMC 2130.75 3945-B/W/MN93 Three Phase Power Quality Analyzer PowerPad with MN93 Current Probes

PowerPad comes with MN93 color-coded current probes (240A)

  • True RMS Single-, two- and three-phase measurements at 256 samples/cycles, plus DC
  • Real-time color waveforms
  • Easyt-to-use on-screen setup
  • Automatic current probe recognition and scaling
  • True RMS voltage and current measurement
  • Measures DC volts, amps and power
  • Display and capture voltage, current and power harmonics to 50th order, including direction, in real time
  • Capture transients down to 1/256th of a cycle
  • Stores comprehensive data base of logged data
  • Phasor diagram display
  • VA, VAR and W per phase and total
  • kVAh, VARh and kWh per phase and total
  • Neutral current display for three-phase
  • Transformer K-factor display
  • Power Factor, displacement PF display
  • Captures up to 50 transients
  • Short-term flicker display
  • Phase unbalance (current and voltage)
  • Harmonic Distortion (total and individual) from 1st to 50th
  • Alarms, surges and sags
  • Screen snapshot function captures waveforms or other information on the display

What's included with the AEMC Instruments 3945-B w/3 MN93

  • AEMC 3945-B PowerPad Power Quality Analyzer Kit with 3x MN93 Clamp-on CT (240A)
