AEMC 8220 Single Phase Power Analyzer with SR193-BK (1200A)

Model: 8220 w/SR193-BK | Order No: 2130.92

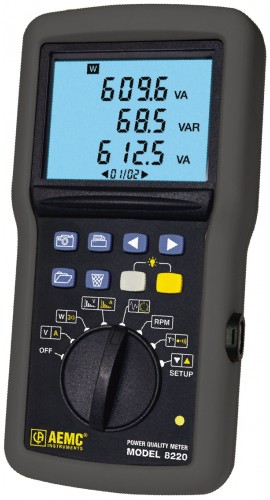

Power Quality Meter Model 8220 with SR193-BK (1200A).

Power Quality Meter Model 8220 with SR193-BK (1200A).

Sale Price $1214.10 USD
Regular Price $1278.00 USD
Availability 3 to 4 Weeks
Quantity

AEMC 2130.92 8220 w/SR193-BK Single-Phase Power Quality Analyzer

The Model 8220 is a single-phase AC + DC power meter with an electroluminescent backlit digital display and is rated to 600V Cat III.

It is a measurement tool for electrical parameters and distribution network disturbances, enabling the user to obtain instant measurements of the main characteristics of a single-phase network (voltage, current, power, voltage and current harmonics, etc.) and to monitor machinery in operation (temperature, inrush current and duration of operation, distance of windings and rotational speed).

The Model 8220’s accuracy is better than 1% (excluding current sensors). It has a great flexibility due to AEMC’s range of current sensors, measuring from a few hundred milliamps to several thousand amps.

The Model 8220 is designed for technicians, control and maintenance engineers, as well as electrical contractors and educators.

The Power Quality Meter Model 8220 with SR193 is supplied with a black 1200A current probe.

Feature:

  • Measures up to 660Vrms or VDC
  • Measures up to 6500AAC or 1400ADC (probe dependent)
  • Displays Min, Max and Avg Volts and Amps, Crest Factor, Peak and K-Factor
  • Calculates and displays Watts, VARs and VA, Power Factor and Displacement Power Factor for single-phase and balanced three-
  • Displays THD for voltage and current
  • Displays individual harmonic values for Volts and Amps through the 50th harmonic
  • Captures and displays inrush current phase rotation and RPM
  • Displays temperature in °F or °C
  • Displays resistance up to 2000? and conducts continuity and diode tests
  • Stores up to nine complete sets of readings for all volt, amp, power, harmonics and other measurements
  • Configurable from DataView® software or front panel
  • Includes DataView® software free for data download and storage, real-time waveform display, analysis and report generation

Applications:

  • Motor start-up analysis
  • Determine phase rotation and motor RPM
  • Detect hot spots in wiring and equipment
  • Verification of power distribution circuits
  • Measurement and recording of power system quality (kW, VA, VAR)
  • Energy metering (kVAh, VARh, kWh)
  • In plant troubleshooting of power distribution panels and individual machinery

8220 Specifications

Electrical
Voltage (TRMS) Phase-to-Phase: 660V
Phase-to-Neutral: 600V
Current (TRMS) MN Clamp: 5mA to 100mA/120A or 2 to 240A
MR Clamp: 10 to 1000A AC, 10 to 1400A DC
SR Clamp: 3 to 1200A
AmpFlex®: 10 to 6500A
Frequency (Hz) 40 to 70Hz
Other Measurements kW, kVAR, PF, DPF, VA, Phase Rotation Temperature, RPM, Resistance, Continuity, and Diode Test
Harmonics 1st to 50th
Sampling Frequency 256 Samples/Cycle
Data Storage Stores nine sets of readings for Volts, Amps, Power, and Harmonics
Power Source Six NiMH AA rechargeable battery pack or six 1.5V AA Alkaline batteries
AC Supply: 120/230V AC (50/60Hz)
Battery Life ≥8 hours with display on ≥40 hours with display off (recording mode)
Mechanical
Communication Port Optically isolated USB
Display Three-line backlit digital with custom icons
Dimensions 8.3 x 4.3 x 2.4 in (211 x 108 x 60 mm)
Weight 1.9 lbs (0.88kg)
Safety Rating EN 61010, 600V Cat. III, IP 54, Pollution Degree 2
Click here for complete specifications on the AEMC 8220 w/SR193-BK

What's included with the AEMC 8220 w/SR193-BK

  • AEMC 8220 Single Phase Power Analyzer with SR193-BK (1200A)
  • Accessories

    Click on a category to view a selection of compatible accessories with the AEMC 8220 Single Phase Power Analyzer with SR193-BK (1200A).

    AEMC 193-24-BK AmpFlex Current Transformer, 6500A, 24" 193-24-BK
    For use with the AEMC 3945/3945-B, 8220, 8230 & 8335. Features a 24" long cable.
    $266.00 USD

    was $280.00


    Learn More

    AEMC 193-36-BK AmpFlex Current Transformer, 6500A, 36" 193-36-BK
    For use with the AEMC 3945/3945-B, 8220, 8230 & 8335. Features a 36" long cable.
    $313.50 USD

    was $330.00


    Learn More

    AEMC MN193-BK Current Transformer for the L104, L564, PowerPad, and PEL Series MN193-BK
    For use with AEMC Power Quality Instruments 8220, 8230, and 3945.
    $251.75 USD

    was $265.00


    Learn More

    AEMC MN93-BK AC Current Probe, 200 A, 10' MN93-BK
    Features 10' lead and 200 A capacity, this probe is designed for use with 3945/3945-B, 8220, 8230, 8333, 8335, 8336, PEL Series, L104, and L564.
    $184.30 USD

    was $194.00


    Learn More

    AEMC SR193-BK AC Current Probe, 1200 A SR193-BK
    Designed for use with 3945/3945B/8220/8230/8333/8335/8336 power quality analyzers, PEL 102/103/105 power and energy loggers, and L104/L564 simple loggers II. Features a current range of 1200 A, and a clamping diameter of 2" (52 mm).
    $307.80 USD

    was $324.00


    Learn More

    AEMC MR193-BK AC Current Probe for THE PowerPad and PEL Series MR193-BK
    For use with AEMC 3945 PowerPad, 8220 & 8230 PowerPad Jr.
    $398.05 USD

    was $419.00


    Learn More

    AEMC 5000.43 Magnetized Voltage Probes, Colour Coded, Set of 2 5000.43
    Set of 2, Red and Black Magnetized Voltage Probes. Rated 600V CAT IV, 1000V CAT III. For use with the AEMC 3945-B, 8220, 8230, 8335 and PEL Series.
    $29.93 USD

    was $31.50


    Learn More

    AEMC 2140.40 BNC Adapter for the SL261 AC/DC Current Probe 2140.40
    BNC Adapter for use with the SL261, 8220, 8333, 8335, and 8336 AC/DC Current Probes.
    $118.28 USD

    was $124.50


    Learn More

    AEMC 2140.69 Safety Alligator Clip, Green 2140.69
    Safety Alligator Clip, Green. Rated 1000V CAT IV, 15A.
    $8.08 USD

    was $8.50


    Learn More
