AEMC 8230 Single Phase Power Quality Analyzer with AmpFlex 193-24-BK CT (6500A)

Model: 8230 w/193-24-BK | Order No: 2130.84 | UPC: 685338220193

Be the first to review this product

Downloads: datasheet manual

AEMC 8230 Single Phase Power Quality Analyzer with AmpFlex 193-24-BK CT (6500A)

Model: 8230 w/193-24-BK | Order No: 2130.84

Be the first to review this product

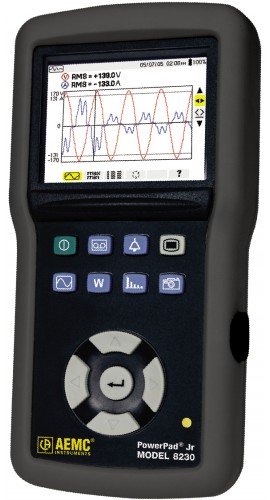

PowerPad Jr. Model 8230 with 193-24-BK (AmpFlex 6500A).

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

AEMC PEL 112 Power and Energy Logger without BK sensors

Model: PEL 112 - w/o sensors | Order No: 2137.63

The PEL 112 is a cost-effective, easy-to-use power and energy data logger that supports single-phase, split-phase, and three-phase (Y, Δ) systems. Ideal for electricians, engineers, and contractors, it is perfect for building and system monitoring, upgrades, and energy audits. It accurately measures, records, and analyzes vital energy data, generating standard and customizable reports with minimal setup.

The replacement product is only available on our affiliate GlobalTestSupply.com website. Don't worry your cart and information will be brought over.

Go to GlobalTestSupply.com

Recommended Accessories

AEMC 193-24-BK AmpFlex Current Transformer, 6500A, 24"

193-24-BK

AEMC 193-36-BK AmpFlex Current Transformer, 6500A, 36"

193-36-BK

AEMC MN193-BK Current Transformer for the L104, L564, PowerPad, and PEL Series

MN193-BK

AEMC MN93-BK AC Current Probe, 200 A, 10'

MN93-BK

AEMC SR193-BK AC Current Probe, 1200 A

SR193-BK

AEMC MR193-BK AC Current Probe for THE PowerPad and PEL Series

MR193-BK

AEMC Instruments 8230 w/193-24-BK Offers

The AEMC 8230 PowerPad® Jr. is an extremely useful and versatile single-phase power quality analyzer that measures and records power, energy and power quality parameters including harmonics and direction of harmonics.

The AEMC 8230 Single Phase Power Quality Analyzer is easy-to-use, compact and shock-resistant. It is intended for technicians and engineers to measure and carry out diagnostic work and power quality work on single- or three-phase balanced load networks.

Users are able to obtain instant waveforms of an electrical networks principal characteristics, and also monitor their variation over a period of time. The multi-tasking measurement system simultaneously handles all the measurement functions and waveform display of the various magnitudes, detection, continuous recordings and their display without any constraints.

This AEMC 8230 PowerPad Jr. includes 24" Ampflex® 193-24 (6500A). See the available additional kits with different current transformers below.

Applications:

Motor start-up analysis
Verification of power distribution circuits
Measurement and recording of power system quality (kW, VA, VAR)
Energy metering (kVAh, VARh, kWh)
In-plant troubleshooting of power distribution panels and individual machinery
Determine harmonic problems originating from source or load

Purchase the AEMC 8230 PowerPad Jr. alone or with the available Current Transformers below:

AEMC 8230 w/ 193-36-BK - includes Ampflex 193-36-BK 36" flexible current transformer (6500A)
AEMC 8230 w/ MN193-BK - includes MN193-BK clamp-on current transformer (6A/120A)
AEMC 8230 w/ MN93-BK - includes MN93-BK clamp-on current transformer (240A)
AEMC 8230 w/ MR193-BK - includes MR193-BK clamp-on current transformer (1000AAC/1400ADC)
AEMC 8230 w/ SR193-BK - includes SR193 clamp-on current transformer (1200A)

AEMC Instruments 8230 w/193-24-BK Specifications

ELECTRICAL
VOLTAGE (TRMS)	Phase-to-Phase: 660V Phase-to-Neutral: 600V
CURRENT (TRMS)	MN Clamp: 5mA to 100mA/120A or 2 to 240A MR Clamp: 10 to 1000Aac, 10 to 1400Adc SR Clamp: 3 to 1200A AmpFlex: 10 to 6500A
FREQUENCY (Hz)	40 to 70Hz
OTHER MEASUREMENTS	kW, kVAR, PF, DPF, kWh, kVARh, kVAh, K-Factor, Flicker, Harmonic Phase Shift, Phase Rotation
HARMONICS	THD-R, THD-F, V, A, VA 1st to 50th, Direction, Sequence
SAMPLING FREQUENCY	256 Samples/cycle
DATA STORAGE	1.5MB partitioned for waveforms, alarms, and trend recording
POWER SOURCE	Six NiMH AA rechargeable battery pack AC Supply: 120/230Vac (50/60Hz)
BATTERY LIFE	≥ 8 hours with display on ≥ 40 hours with display off (recording mode)
MECHANICAL
COMMUNICATION PORT	Optically isolated USB
DISPLAY	1/4 VGA (320 x 240) color LCD
DIMENSIONS	8.3 x 4.3 x 2.4 in (211 x 108 x 60 mm)
WEIGHT	1.9 lbs (0.88kg)
SAFETY RATING	EN 61010, 600V Cat. III, IP 54, Pollution Degree 2

Click here for complete specifications on the AEMC Instruments 8230 w/193-24-BK

What's included with the AEMC Instruments 8230 w/193-24-BK

AEMC 8230 Single Phase Power Quality Analyzer with AmpFlex 193-24-BK CT (6500A)

AEMC DataView<sup>&reg</sup> 3.50 Upgrade

This video will go over the new core features of the software. Additionally, the user can download this upgraded version of the software from within DataView® or a control panel, to do this click Help on the menu bar and select Update.

datasheet for the AEMC 8230 Single Phase Power Quality Analyzer with AmpFlex 193-24-BK CT (6500A) manual for the AEMC 8230 Single Phase Power Quality Analyzer with AmpFlex 193-24-BK CT (6500A)

Accessories

Click on a category to view a selection of compatible accessories with the AEMC 8230 Single Phase Power Quality Analyzer with AmpFlex 193-24-BK CT (6500A).

Current Probes

AEMC 193-24-BK AmpFlex Current Transformer, 6500A, 24" 193-24-BK

Single 24" flexible sensor for use with the 3945/3945-B, this AmpFlex sensor model measures current, most typically in a conductor or bus bar, without opening the circuit. In addition, this insulated sensor protects users from dangerous voltages running through that circuit.

$308.75 USD

was $325.00

Learn More

AEMC 193-36-BK AmpFlex Current Transformer, 6500A, 36" 193-36-BK

For use with the AEMC 3945/3945-B, 8220, 8230 & 8335. Features a 36" long cable.

$356.25 USD

was $375.00

Learn More

AEMC MN193-BK Current Transformer for the L104, L564, PowerPad, and PEL Series MN193-BK

For use with AEMC Power Quality Instruments 8220, 8230, and 3945.

$322.05 USD

was $339.00

Learn More

AEMC MN93-BK AC Current Probe, 200 A, 10' MN93-BK

Features 10' lead and 200 A capacity, this probe is designed for use with 3945/3945-B, 8220, 8230, 8333, 8335, 8336, PEL Series, L104, and L564.

$239.40 USD

was $252.00

Learn More

AEMC SR193-BK AC Current Probe, 1200 A SR193-BK

Designed for use with 3945/3945B/8220/8230/8333/8335/8336 power quality analyzers, PEL 102/103/105 power and energy loggers, and L104/L564 simple loggers II. Features a current range of 1200 A, and a clamping diameter of 2" (52 mm).

$412.30 USD

was $434.00

Learn More

AEMC MR193-BK AC Current Probe for THE PowerPad and PEL Series MR193-BK

For use with AEMC 3945 PowerPad, 8220 & 8230 PowerPad Jr.

$483.55 USD

was $509.00

Learn More

Voltage Probes

AEMC 5000.43 Magnetized Voltage Probes, Colour Coded, Set of 2 5000.43

Set of 2, Red and Black Magnetized Voltage Probes. Rated 600V CAT IV, 1000V CAT III. For use with the AEMC 3945-B, 8220, 8230, 8335 and PEL Series.

$35.96 USD

was $37.85

Learn More

Ask a question about AEMC 8230 Single Phase Power Quality Analyzer with AmpFlex 193-24-BK CT (6500A)

Customer Reviews for the AEMC Instruments 8230 w/193-24-BK

Description ➕➖

AEMC Instruments 8230 w/193-24-BK Offers

Motor start-up analysis
Verification of power distribution circuits
Measurement and recording of power system quality (kW, VA, VAR)
Energy metering (kVAh, VARh, kWh)
In-plant troubleshooting of power distribution panels and individual machinery
Determine harmonic problems originating from source or load

Specifications ➕➖

AEMC Instruments 8230 w/193-24-BK Specifications

ELECTRICAL
VOLTAGE (TRMS)	Phase-to-Phase: 660V Phase-to-Neutral: 600V
CURRENT (TRMS)	MN Clamp: 5mA to 100mA/120A or 2 to 240A MR Clamp: 10 to 1000Aac, 10 to 1400Adc SR Clamp: 3 to 1200A AmpFlex: 10 to 6500A
FREQUENCY (Hz)	40 to 70Hz
OTHER MEASUREMENTS	kW, kVAR, PF, DPF, kWh, kVARh, kVAh, K-Factor, Flicker, Harmonic Phase Shift, Phase Rotation
HARMONICS	THD-R, THD-F, V, A, VA 1st to 50th, Direction, Sequence
SAMPLING FREQUENCY	256 Samples/cycle
DATA STORAGE	1.5MB partitioned for waveforms, alarms, and trend recording
POWER SOURCE	Six NiMH AA rechargeable battery pack AC Supply: 120/230Vac (50/60Hz)
BATTERY LIFE	≥ 8 hours with display on ≥ 40 hours with display off (recording mode)
MECHANICAL
COMMUNICATION PORT	Optically isolated USB
DISPLAY	1/4 VGA (320 x 240) color LCD
DIMENSIONS	8.3 x 4.3 x 2.4 in (211 x 108 x 60 mm)
WEIGHT	1.9 lbs (0.88kg)
SAFETY RATING	EN 61010, 600V Cat. III, IP 54, Pollution Degree 2

Click here for complete specifications on the AEMC Instruments 8230 w/193-24-BK
