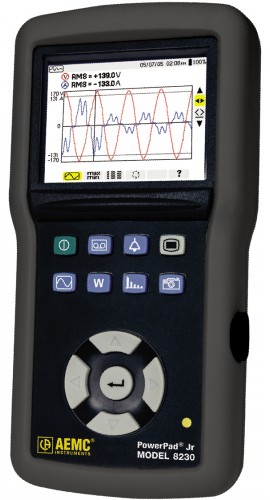

AEMC 8230 Single Phase Power Quality Analyzer with SR193 CT (1200A)

Model: 8230 w/SR193-BK | Order No: 2130.83 | UPC: 685338220186

Be the first to review this product

Downloads: datasheet manual

AEMC 8230 Single Phase Power Quality Analyzer with SR193 CT (1200A)

Model: 8230 w/SR193-BK | Order No: 2130.83

Be the first to review this product

PowerPad Jr. Model 8230 with SR193-BK (1200A).

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

AEMC PEL 112 Power and Energy Logger without BK sensors

Model: PEL 112 - w/o sensors | Order No: 2137.63

The PEL 112 is a cost-effective, easy-to-use power and energy data logger that supports single-phase, split-phase, and three-phase (Y, Δ) systems. Ideal for electricians, engineers, and contractors, it is perfect for building and system monitoring, upgrades, and energy audits. It accurately measures, records, and analyzes vital energy data, generating standard and customizable reports with minimal setup.

The replacement product is only available on our affiliate GlobalTestSupply.com website. Don't worry your cart and information will be brought over.

Go to GlobalTestSupply.com

AEMC PEL 113 Power and Energy Logger with BK sensors

Model: PEL 113 | Order No: 2137.54

The PEL 113 is a cost-effective, easy-to-use power and energy data logger designed to simplify energy audits, system monitoring, and electrical upgrades. Delivering precise, real-time measurements for single-phase, split-phase, and three-phase electrical systems, it helps efficiency professionals, facility managers, and electrical engineers reduce costs, improve power quality, and optimize system performance.

The replacement product is only available on our affiliate GlobalTestSupply.com website. Don't worry your cart and information will be brought over.

Go to GlobalTestSupply.com

AEMC PEL 115 Power and Energy Logger without BK sensors

Model: PEL 115 | Order No: 2137.56

The PEL 115 measures and records all power and energy parameters with precision. Built into a rugged, IP67-rated, all-terrain case, it's designed for demanding field use across multiple industries.

The replacement product is only available on our affiliate GlobalTestSupply.com website. Don't worry your cart and information will be brought over.

Go to GlobalTestSupply.com

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

AEMC 193-24-BK AmpFlex Current Transformer, 6500A, 24"

193-24-BK

AEMC 193-36-BK AmpFlex Current Transformer, 6500A, 36"

193-36-BK

AEMC MN193-BK Current Transformer for the L104, L564, PowerPad, and PEL Series

MN193-BK

AEMC MN93-BK AC Current Probe, 200 A, 10'

MN93-BK

AEMC SR193-BK AC Current Probe, 1200 A

SR193-BK

AEMC MR193-BK AC Current Probe for THE PowerPad and PEL Series

MR193-BK

AEMC Instruments 8230 w/SR193-BK Offers

The AEMC 8230 PowerPad® Jr. is an extremely useful and versatile single-phase power quality analyzer that measures and records power, energy and power quality parameters including harmonics and direction of harmonics. The AEMC 8230 Single Phase Power Quality Analyzer is easy-to-use, compact and shock-resistant. It is intended for technicians and engineers to measure and carry out diagnostic work and power quality work on single- or three-phase balanced load networks. Users are able to obtain instant waveforms of an electrical networks principal characteristics, and also monitor their variation over a period of time. The multi-tasking measurement system simultaneously handles all the measurement functions and waveform display of the various magnitudes, detection, continuous recordings and their display without any constraints.

Features

Measures up to 660Vrms or Vdc
Measures up to 6500Aac or 1400Adc(probe dependent)
Displays Min, Max and Average Volts and Amps,Crest Factor, Peak value and K-Factor
Calculates and displays Watts, VARs and VA,Power Factor and Displacement Power Factor for single-phase and balanced three-phase
Measures and records power systems (kW, VA, kVAR)
Energy metering (kAh, VARh, kWh)
Displays total harmonic distortion(THD-F and THD-R) for voltage and current•Displays individual harmonic values and % for Volts and Amps through the 50th harmonic
Captures, displays and stores inrush current waveforms and statistics•Stores up to eight screen captures
Stores up to 1MB of trend recorded data•Configurable from DataView® software or front panel
Download stored data to DataView® software via optical USB port (included)
Captures up to 4096 alarm events from up to10 different thresholds
Displays and records up to 17 different power quality parameters
The Max and Min RMS measurements are calculated every half-period

AEMC Instruments 8230 w/SR193-BK Specifications

Electrical
Voltage (TRMS)	Phase-to-Phase: 660V Phase-to-Neutral: 600V
Current (TRMS)	MN Clamp: 5mA to 100mA/120A or 2 to 240A MR Clamp: 10 to 1000Aac, 10 to 1400Adc SR Clamp: 3 to 1200A AmpFlex: 10 to 6500A
Frequency (Hz)	40 to 70Hz
Other Measurements	kW, kVAR, PF, DPF, kWh, kVARh, kVAh, K-Factor, Flicker, Harmonic Phase Shift, Phase Rotation
Harmonics	THD-R, THD-F, V, A, VA 1st to 50th, Direction, Sequence
Sampling Frequency	256 Samples/cycle
Data Storage	1.5MB partitioned for waveforms, alarms, and trend recording
Power Source	Six NiMH AA rechargeable battery pack AC Supply: 120/230Vac (50/60Hz)
Battery Life	≥ 8 hours with display on ≥ 40 hours with display off (recording mode)
Mechanical
Communication Port	Optically isolated USB
Display	1/4 VGA (320 x 240) color LCD
Dimensions	8.3 x 4.3 x 2.4 in (211 x 108 x 60 mm)
Weight	1.9 lbs (0.88kg)
Safety Rating	EN 61010, 600V Cat. III, IP 54, Pollution Degree 2

Click here for complete specifications on the AEMC Instruments 8230 w/SR193-BK

What's included with the AEMC Instruments 8230 w/SR193-BK

PowerPad Jr True RMS Power Quality Analyzer
SR193-BK AC Current Probe
2 x 10ft (3m) Red & Black Leads with Alligator Clips
Optical USB Cable
US 110V Power Adapter
USB Stick supplied with DataView Software and a Manual
Carrying Bag
6 x 1.2V AA NiMH Rechargeable Batteries
