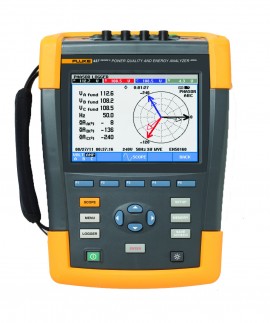

Fluke 437-II/BASIC Power Quality Analyzer, 4 Current Input

Model: 437-II/BASIC | UPC: 095969615617

Fluke 437-II/BASIC Power Quality Analyzer, 4 Current Input-


Downloads: datasheet manual

Fluke 437-II/BASIC Power Quality Analyzer, 4 Current Input

Model: 437-II/BASIC

Measures power, energy and power quality data on all 3 phases including harmonics, transients, sags/swells, power factor, inrush. Does not include current probes.

Measures power, energy and power quality data on all 3 phases including harmonics, transients, sags/swells, power factor, inrush. Does not include current probes.

Your Price $10099.99 USD
Availability 2 to 3 Weeks
Quantity

Fluke 437-II/BASIC Offers

 The Fluke 437 Series II Power Quality and Energy Analyzer is the world's only Power Quality analyzer that can monetize the cost of energy waste due to poor power quality and is ideal for characterizing power quality, conducting load studies and capturing hard-to-find voltage events over a user-defined period of time.  Designed for capturing power quality measurements in avionic and military systems, Fluke 437 Series II is the must-have 400 Hz quality analyzer. This version is just the mainframe so you can select the ideal current probes for you applications.

Higher power frequencies mean smaller and lighter transformers and motors – a critical concern in avionic and military transport applications where weight is a primary concern. Designed specifically for these environments, the Fluke 437 Series II Power Quality and Energy Analyzer is a must-have for those working in ships, submarines, aircraft, spacecraft and other military vehicles.

Equipped with all the functionalities of the Fluke 435 Series II, the 437 Series II offers the best in power quality and energy analysis all the way to 400 Hz.

Features

  • 401 Hz measurement – capture power quality measurements for avionic and military power systems
  • PowerWave data capture – capture fast RMS values to see every waveform
  • Power inverter efficiency – measure both ac power and dc power, in and out
  • Energy monetization – calculate the fiscal cost of energy waste due to poor power quality
  • Energy assessment– quantify the before and after installation improvements in energy consumption.
  • Frontline troubleshooting – quickly diagnose problems on-screen to get your operation back online
  • Predictive maintenance – detect and prevent power quality issues before they cause downtime
  • Long-term analysis – uncover hard-to-find or intermittent issues
  • Load studies – verify electrical system capacity before adding loads

PowerWave Data Capture

For some users, loads switching is a cause of power quality problems. When loads switch on, the current draw sometimes causes the voltage to drop to a level that causes other equipment to malfunction. The PowerWave function available in the 435 and 437 Series II models enables users to capture voltage, current and frequency signals simultaneously at a high speed to see which interaction is potentially causing problems. PowerWave goes beyond standard power quality measurements; PowerWave's fast data capture mode enables system dynamics to be characterized.

Waveforms for voltage and current are continuously captured for the specified time, and are displayed on screen in high detail; the power waveform is derived from the data. In addition, half-cycle RMS values for voltage, current, power and frequency can be stored and retrieved for analysis. This feature is particularly useful for testing of standby generation systems and UPS systems where reliable switch-on can be vital.

Power inverter efficiency

Power inverters take DC current and transform it into AC current, or vice versa. Solar generation systems usually include an inverter that takes the DC energy from the solar cells and converts it to useful AC power. Inverters can lose performance over time and need to be checked. By comparing the input power with the output power you can determine the system efficiency. The 430 series II can measure the efficiency of such inverters by simultaneously measuring the DC and AC power of a system to determine how much power is lost in the conversion process.

Unified Power Measurement

Fluke's patented Unified Power Measurement system (UPM) provides the most comprehensive view of power available, measure:

  • Parameters of Classical Power (Steinmetz 1897) and IEEE 1459-2000 Power
  • Detailed Loss Analysis
  • Unbalance Analysis

These UPM calculations are used to quantify the fiscal cost of energy loss caused by power quality issues. The calculations are computed, along with other facility-specific information, by an Energy Loss Calculator that ultimately determines how much money a facility loses due to wasted energy.

AutoTrend - Quickly see the trend

Unique AutoTrend gives you fast insight into changes over time. Every displayed reading is automatically and continuously recorded without having to set up threshold levels or having to manually start the process. You can quickly view trends in voltage, current, frequency, power, harmonics or flicker on all three phases plus neutral.

SystemMonitor - Check performance against EN50160 with ease

With a single push of a button, the unique System-Monitor gives you an overview of power system performance, and checks the compliance of incoming power to EN50160 limits or to your own custom specifications. The overview is shown on a single screen, with color-coded bars clearly indicating which parameters fall outside the limits.

Applications

  • Aviation
  • Military and Defense
  • Marine
  • Sensing & Instrumentation
  • Signal Processing
  • Test & Measurement

Fluke 437-II/BASIC Specifications

Battery Life 7 hours
Battery Type nimh
CAT III Rating 1000v
CAT IV Rating 600v
Current AC Accuracy 1% + 5 counts
Current DC Accuracy 0.10%
Current Inputs 4
Dimensions 256 mm x 169 mm x 64 mm (10 in x 6.5 in x 2.5 in)
High Speed Capture Rate 200
IP Rating ip51
Memory 16
Operating Temperature 0 °C to +50 °C (32 °F to 122 °F)
Sample Rate 20.48
Storage Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Typical Recording Period 30
Voltage AC Accuracy 0.1% vnom
Voltage DC Accuracy 0.10%
Voltage Inputs 4
Warranty 3 years
Weight 2 kg (4.5 lb)
Click here for complete specifications on the Fluke 437-II/BASIC

What's included with the Fluke 437-II/BASIC

  • Fluke 437-II/BASIC Power Quality Analyzer
  • BC430 Power Adapter
  • International Plug Adapter Set
  • BP290 (Single Capacity Li-ion battery) 28 Wh (7 hours or more)
  • TLS430 Test Lead and Alligator Clip Set
  • WC100 Color Coding Clips and Regional Decals
  • 8 GB SD Card

Webinar: Introduction to Portable Precision Power Analyzers with Fluke


This wideband precision analyzer is accurate enough for the lab, yet it's built for the field. Offering you more freedom than ever before to make high accuracy power measurements wherever you need to. Whether in the lab, or in the field. Designed for portability and eliminates the need to carry large, fragile, expensive analyzers into the field, allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables, not just at a test bench or in the lab.
During our 1-hour webinar, we've covered:
- The new Fluke Norma 6000 Power Analyzer for accurate measurements at frequencies from DC to 500kHz.
- It is not a Power Quality Analyzer.
- It is a Power Analyzer for accurate measurements at frequencies from DC to 500kHz.
- It is designed to be used in the field, its rugged, battery-operated, lightweight, and suited to use outside of a laboratory environment.
- You’ll learn why it can help you, where and how it is used.
