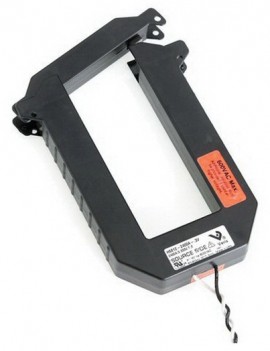

The Large split-core current transformer features 800 A and a .3 V output.
The Large split-core current transformer features 800 A and a .3 V output.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
The replacement product is only available on our affiliate GlobalTestSupply.com website. Don't worry your cart and information will be brought over.
Features
Applications
A = 3.8" (96 mm)
B = 1.2" (30 mm)
C = 1.3" (32 mm)
D = 1.2" (30 mm)
E = 4.0" (100 mm)
F = 4.8" (121 mm)
A = 4.9" (125 mm)
B = 2.9" (73 mm)
C = 2.5" (62 mm)
D = 1.2" (30 mm)
E = 5.2" (132 mm)
F = 6.0" (151 mm)
A = 4.9" (125 mm)
B = 5.5" (139 mm)
C = 2.5" (62 mm)
D = 1.2" (30 mm)
E = 7.9" (201 mm)
F = 6.0" (151 mm)
| Accuracy | ±1% of reading from 10 to 100% of rated current |
| Current Measurement Range | 0 to 800 A |
| Environmental Conditions | Humidity Range: 0 to 95% Non-Condensing Storage Temperature: -40 to 158°F (-40 to 70°C) Operating Temperature: 5 to 140°F (-15 to 60°C) |
| Frequency Rating | 50 to 60 Hz |
| Mounting | Split-Core |
| Output Specifications | 0.3 V |
| Dimensions | 6 x 7.9 x 1.2" (151 x 201 x 30 mm) |
| Accuracy | ±1% of reading from 10 to 100% of rated current |
| Current Measurement Range | 0 to 800 A |
| Environmental Conditions | Humidity Range: 0 to 95% Non-Condensing Storage Temperature: -40 to 158°F (-40 to 70°C) Operating Temperature: 5 to 140°F (-15 to 60°C) |
| Frequency Rating | 50 to 60 Hz |
| Mounting | Split-Core |
| Output Specifications | 0.3 V |
| Dimensions | 6 x 7.9 x 1.2" (151 x 201 x 30 mm) |
