Veris H6812-600A-5A Split Core Current Transformer

Model: H6812-600A-5A

Veris H6812-600A-5A Split Core Current Transformer-

Veris H6812-600A-5A Split Core Current Transformer

Model: H6812-600A-5A

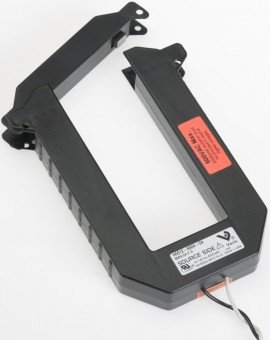

Hawkeye Split Core Current Transformer - 600A, 5A Output, Large.

Hawkeye Split Core Current Transformer - 600A, 5A Output, Large.

This product has been discontinued. Click here for the replacement model(s).


Veris split-core and solid-core current transformers provide a 0-5AAC output for use with transducers, data loggers, and chart recorders.

Applications

  • Data logging
  • Recording
  • Power monitoring
  • Energy management
  • Alternative energy monitoring
  • Cost allocation

Features

  • Unique hinge design on split-cores...easy installation
  • 5 Amp standard output...compatible with existing systems
  • UL recognized

Dimensional Drawings

The Dimensions for the H681 Series of Split Core CTs
H6810/Small (200Amp / 300Amp)

A = 3.8" (96 mm)
B = 1.2" (30 mm)
C = 1.3" (32 mm)
D = 1.2" (30 mm)
E = 4.0" (100 mm)
F = 4.8" (121 mm)

H6811/Medium (400Amp / 600Amp / 800Amp)

A = 4.9" (125 mm)
B = 2.9" (73 mm)
C = 2.5" (62 mm)
D = 1.2" (30 mm)
E = 5.2" (132 mm)
F = 6.0" (151 mm)

H6811/Large (800 Amp / 1000 Amp / 1200 Amp / 1600 Amp / 2000 Amp / 2400 Amp)

A = 4.9" (125 mm)
B = 5.5" (139 mm)
C = 2.5" (62 mm)
D = 1.2" (30 mm)
E = 7.9" (201 mm)
F = 6.0" (151 mm)


Specifications

Inputs:
Frequency Range 50/60 Hz
Leads 6 ft (1.8 m)
Accuracy:
Accuracy ±1% of reading from 10% to 100% of rated current
Outputs:
Output at Rated Current 5A
Mechanical:
Insulation 600VAC
Environmental:
Operating Temperature Range 2400A models only: -15° to 50°C (5° to 122°F); All other models: -15° to 60°C (5° to 140°F)
Storage Temperature Range -40° to 70°C (-40° to 158°F)
Humidity Range 0-95% noncondensing
Agency Approvals UL61010, EN61010
