Acuvim IIE Power & Energy Meter

Acuvim IIE power meter is a revenue grade power & energy meter with on-board datalogging that can be used to meter & monitor power consumption at electrical panels and energy consuming devices or systems. It offers a wide array of communications options and standard MODBUS communications via a built-in RS485 port. This meter can also be used in conjunction with the free Acuview PC software for remote communications and control.

As the highest model in the Acuvim II-Series power meters, what sets the Acuvim IIE apart is that it can be configured for TOU (Time of Use energy/max demand) and Daylight Savings Time (Adjustable to 2 formats). The TOU feature allows you to configure up to 4 Tarrifs, 12 Seasons and 14 Schedules.

Since the Acuvim IIE is 0.2% accuracy and meets the ANSI C12.20 standard for revenue grade meters so it can also be used for tenant sub-metering applications.

With so many features for the low price, the Acuvim IIE offers unbeatable value.

Measurements

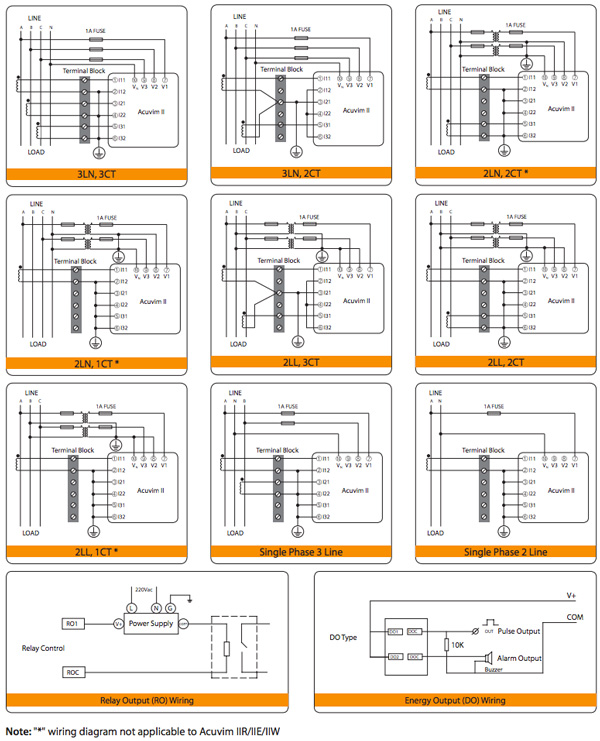

Acuvim IIE power meters can be used on any single or three phase electrical system up to 600V AC. Measurement parameters include volts, amps, frequency, power (apparent, active, reactive) & energy, power factor, peak demand, run time, THD and individual harmonics on both voltage and current to the 63rd harmonic.

In addition, Acuvim IIE power meters support four quadrant energy, showing total power, import, export and net power with 0.2% accuracy.

Communications
There are four optional field upgradeable plug-in communications modules for the Acuvim IIE power meter. These modules include analog I/O ports, digital I/O ports, Ethernet, or relays.

The table below shows which input/outputs are available on which modules:

Module	Digital In (DI)	Power for DI	Digital Out (DO)	Relay Out (RO)	Analog In (AI)	Analog Out (AO)
AXM-IO1	6	1		2
AXM-IO2	4		2			2
AXM-IO3	4			2	2

In addition, there are three communication modules for the Acuvim IIE - AXM-PROFI for PROFIBUS communication, AXM-NET for ethernet communications and the AXM-RS485 for an additional MODBUS RS485 communication port.

The Ethernet communications module enables MODBUS communication over Ethernet, plus offers configurable email alarms/alerts and a built-in web server for real-time data access through an Internet browser.

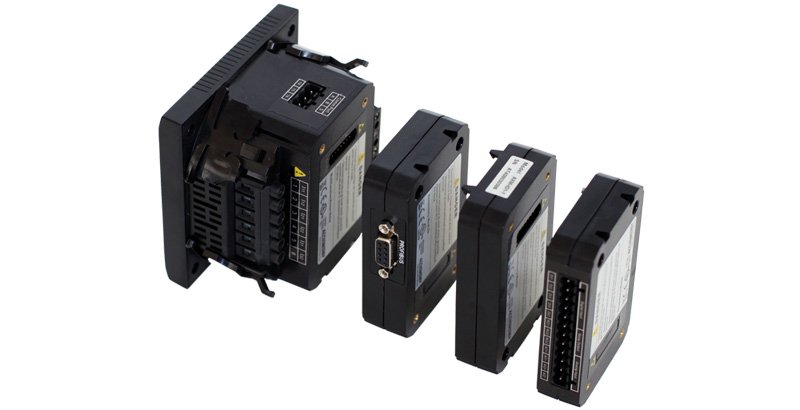

A total of 3 external modules can be stacked and used together with each Acuvim IIE meter. All modules are self-detecting and can be configured through the display or through Acuview Software.

Software
Acuvim IIE models are compatible with Acuview Software and communicate via MODBUS communications protocol using either the built-in RS485 serial port or the optional AXM-NET Ethernet Module. Acuview Software enables remote meter access for real-time monitoring and local PC-based datalogging. You can download a demo copy of Acuview software - instructions for installing and using the demo software are in this PDF document.

Watch a video demo of Acuview software.

Acuview software is a PC-based data logging and reporting software designed to extend the capabilities of any Acuvim power meter that uses RS485 or Ethernet communications. Best of all, the software is completely free!


Form Factor

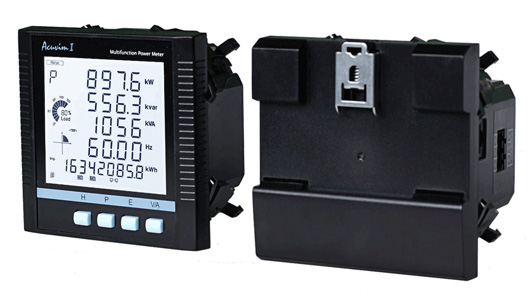

This power meter is packaged in a compact housing that fits a standard 96×96 DIN or 4’’ ANSI Round coutout. The Acuvim IIE display is a large character graphical LCD screen with white back light.

Warranty & Approvals
Acuvim IIE meters are UL Listed for use throughout North America and come with a 5 Year manufacturer's warranty.

Full Review

Metering

▪ Voltage V1, V2, V3, Vlnavg, V12, V23, V31, Vllavg
▪ Current I1, I2, I3, In, Iavg
▪ Power P1, P2, P3, Psum
▪ Reactive Power Q1, Q2, Q3, Qsum
▪ Apparent Power S1, S2, S3, Ssum
▪ Frequency F
▪ Power Factor PF1, PF2, PF3, PF
▪ Energy Ep_imp, Ep_exp, Ep_total, Ep_net
▪ Reactive Energy Eq_imp, Eq_exp, Eq_total, Eq_net
▪ Apparent Energy Es
▪ Demand Dmd_P, Dmd_Q, Dmd_S

Time Of Use

▪ Time Of Use (Energy/max demand) 4 tarrifs, 12 seasons, 12 schedules
▪ Daylight Saving Time (Two formats adjust) Month/Day/Hour/Monute, Month/Week/First few weeks/Hour/Minute

Monitoring

▪ Power Quality
▪ Voltage Harmonics 2nd to 63rd and THD
▪ Current Harmonics 2nd to 63rd and THD
▪ Voltage Crest Factor
▪ THFF (TIF)
▪ Current K Factor
▪ Voltage Unbalance Factor U_unbl
▪ Current Unbalance Factor I_unbl
▪ Max/Min Statistics with Time Stamps

Alarms

Limits can be set for up to 16 indicated parameters and can be set with a specified time interval. If any input of the indicated parameters is over or under its setting limit and persists over the specified time interval, the event will be recorded with time stamps and trigger the Alarm DO output. The 16 indicated parameters can be selected from any of the 44 parameters available.

I/O option module

The E-module® technique was adopted for its flexibility and easy expansion of the I/O function of Acuvim II. A maximum of 3 modules can be used for one meter. Digital input, digital output, pulse output, relay output, analog input and analog output are provided by I/O option module.

Communication

RS485, Industry standard Modbus™ protocol
Module Option: Ethernet module, Profbus-DP module
Dual communication ports.

Display

Clear and large character LCD Screen display with white back light
Wide environmental temperature endurance
Display Load percentage, 4 quadrants power and load nature

Outline

Small Size 96X96 DIN or 4" ANSI Round

Data Logging

4MB of on-board data logging memory
Remote datalogging can also be achieved using the free Acuview software with either MODBUS RS485 or MODBUS over Ethernet with the optional AXM-NET Ethernet module.
