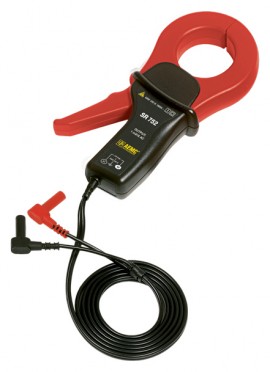

AEMC SR752 AC Current Probe, Lead, 1mV/A, 1200A AC, 5ft

Model: SR752 | Order No: 2116.32 | UPC: 685338040135

AEMC SR752 AC Current Probe, Lead, 1mV/A, 1200A AC, 5ft-


Downloads: datasheet manual

AEMC SR752 AC Current Probe, Lead, 1mV/A, 1200A AC, 5ft

Model: SR752 | Order No: 2116.32

This Current Probe is designed for use in utility and industrial environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is assembled to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States.

This Current Probe is designed for use in utility and industrial environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is assembled to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States.

Sale Price $303.05 USD
Regular Price $319.00 USD
Availability 1 Week
Quantity

Add In-House Traceable Calibration to your SR752

Add In-House Traceable Calibration to your SR752


AEMC SR752 Offers

This general purpose 1000AAC current probe is designed for use with DMMs, loggers and other instruments that have voltage inputs. It has a voltage output proportional at the rate of 1mV per amp to the current measured in the jaw of the probe. The SR752 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.

Features

  • Measurement range of 100mA to 1200AAC
  • Large jaw opening accommodates conductors up to two 500kcmil
  • Improved ergonomic design and easy operation
  • High content nickel metal core
  • Conforms to EN 61010, 600V CAT III
  • Low phase shift for power measurement
  • Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

Applications

  • Power quality measuring
  • < li>Large industrial loads
  • Measuring around cable bundles
  • Power load monitoring
  • Waveform analysis

AEMC SR752 Specifications

Nominal Range 1000A
Measurement Range 100mA to 1200A
Transformation Ratio Voltage output
Output Signal 1mV AC/A AC (1V AC at 1000A)
Accuracy (1000A Range) 0.1 to 1A: ≤2% of Reading ± 3µV
1 to 10A: <1% of Reading
10 to 100A: ≤0.5% of Reading
100 to 1200A: ≤0.3% of Reading
Phase Shift (1000A Range) 1 to 10A: ≤2°
10 to 100A: ≤1°
100 to 1200A: ≤0.7°
Overload 1200A for 40 min ON, 20 min OFF
Frequency Range 30Hz to 5kHz
Current derating above 1kHz using the formula: 1000A x 1F (in kHz)
Load Impedance 100kΩ min
Working/Common Mode Voltage 600Vrms Cat. III
Output Termination 5ft Lead
Click here for complete specifications on the AEMC SR752

What's included with the AEMC SR752

  • AEMC SR752 AC Current Probe, Lead, 1mV/A, 1200A AC, 5ft
  • Customer Reviews for the AEMC SR752

    Ask a question about AEMC SR752 AC Current Probe, Lead, 1mV/A, 1200A AC, 5ft

    comments powered by Disqus

    AEMC SR752 Offers

    This general purpose 1000AAC current probe is designed for use with DMMs, loggers and other instruments that have voltage inputs. It has a voltage output proportional at the rate of 1mV per amp to the current measured in the jaw of the probe. The SR752 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.

    Features

    • Measurement range of 100mA to 1200AAC
    • Large jaw opening accommodates conductors up to two 500kcmil
    • Improved ergonomic design and easy operation
    • High content nickel metal core
    • Conforms to EN 61010, 600V CAT III
    • Low phase shift for power measurement
    • Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

    Applications

    • Power quality measuring
    • < li>Large industrial loads
    • Measuring around cable bundles
    • Power load monitoring
    • Waveform analysis

    AEMC SR752 Specifications

    Nominal Range 1000A
    Measurement Range 100mA to 1200A
    Transformation Ratio Voltage output
    Output Signal 1mV AC/A AC (1V AC at 1000A)
    Accuracy (1000A Range) 0.1 to 1A: ≤2% of Reading ± 3µV
    1 to 10A: <1% of Reading
    10 to 100A: ≤0.5% of Reading
    100 to 1200A: ≤0.3% of Reading
    Phase Shift (1000A Range) 1 to 10A: ≤2°
    10 to 100A: ≤1°
    100 to 1200A: ≤0.7°
    Overload 1200A for 40 min ON, 20 min OFF
    Frequency Range 30Hz to 5kHz
    Current derating above 1kHz using the formula: 1000A x 1F (in kHz)
    Load Impedance 100kΩ min
    Working/Common Mode Voltage 600Vrms Cat. III
    Output Termination 5ft Lead
    Click here for complete specifications on the AEMC SR752
