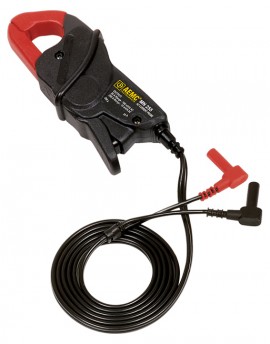

AEMC MN255 AC Current Probe, Lead, 100mV/A, 24A, 10mV/A, 240A

Model: MN255 | Order No: 2115.81 | UPC: 685338030105

AEMC MN255 AC Current Probe, Lead, 100mV/A, 24A, 10mV/A, 240A-


Downloads: datasheet

AEMC MN255 AC Current Probe, Lead, 100mV/A, 24A, 10mV/A, 240A

Model: MN255 | Order No: 2115.81

This small and compact Current Probe is designed to meet the most stringent demands in industry and electrical contracting. Model MN255 meets EN 61010, 600V, Cat. III safety standards and is CE Marked and UL approved for Canada and United States. Features a measurement range of 0.5 to 240A AC.

This small and compact Current Probe is designed to meet the most stringent demands in industry and electrical contracting. Model MN255 meets EN 61010, 600V, Cat. III safety standards and is CE Marked and UL approved for Canada and United States. Features a measurement range of 0.5 to 240A AC.

Sale Price $165.30 USD
Regular Price $174.00 USD
Availability 1 to 2 Weeks
Quantity

Add In-House Traceable Calibration to your MN255

Add In-House Traceable Calibration to your MN255


AEMC MN255 Offers

The MN255 is a high sensitivity probe with voltage outputs (100mV/A and 10mV/A) and combine two switch-selectable ranges of 20A and 200A, thus permitting accurate measurements at low and high levels. The MN255 has integral 5ft (1.5m) leads terminated by shrouded banana plugs.

Features

  • Small, compact size
  • Measurement range of 0.5 to 240A AC
  • Large jaw opening accommodates conductors up to 250MCM
  • Designed for DMMs, loggers, recorders and oscilloscopes
  • 40Hz to 10kHz response
  • 100mV AC/A AC – 10MV AC/A AC output signals
  • Designed to EN 61010, 600V, Cat. III safety standard
  • UL approved for Canada and United States
  • Double Insulation
  • CE Mark

Applications

  • Measuring in breaker panels
  • Industrial loads
  • HVAC/R
  • Residential and commercial sites
  • 5A secondary current transformers (CTs) monitoring

AEMC MN255 Specifications

Nominal Range 20A & 200A
Measurement Range 0.5 to 240A
Transformation Ratio Voltage output
Output Signal 20A: 100mV/A
200A: 10mV/A
Accuracy (20A Range) 1.0% of Reading ±50mV
Phase Shift (20A Range) Not Specified
Overload (20A Range) 24A for 10 min ON, 30 min OFF
Accuracy (200A Range) 0.5 to 10A: 3.0% of Reading ± 5mV
10 to 40A: 2.5% of Reading ± 5mV
40 to 100A: 2.0% of Reading ± 5mV
100 to 240A: 1.0% of Reading ± 5mV
Phase Shift (200A Range) 0.5 to 10A: Not Specified
10 to 40A: ≤5.0°
40 to 100A: ≤3.0°
100 to 240A: ≤2.5°
Overload (200A Range) 240A for 10 min ON, 30 min OFF
Frequency Range 40 to 10kHz
Limit Operating Conditions 200A permanently to 1kHz
Derating above 3kHz: 200A x (1/0.333F), F in kHz
Crest Factor 3 at 200Arms with an error (due to CF) of 4%
Working/Common Mode Voltage 600Vrms
Output Termination 5ft Lead
Click here for complete specifications on the AEMC MN255

What's included with the AEMC MN255

  • AEMC MN255 AC Current Probe, Lead, 100mV/A, 24A, 10mV/A, 240A
  • Customer Reviews for the AEMC MN255

    Ask a question about AEMC MN255 AC Current Probe, Lead, 100mV/A, 24A, 10mV/A, 240A

    comments powered by Disqus

    AEMC MN255 Offers

    The MN255 is a high sensitivity probe with voltage outputs (100mV/A and 10mV/A) and combine two switch-selectable ranges of 20A and 200A, thus permitting accurate measurements at low and high levels. The MN255 has integral 5ft (1.5m) leads terminated by shrouded banana plugs.

    Features

    • Small, compact size
    • Measurement range of 0.5 to 240A AC
    • Large jaw opening accommodates conductors up to 250MCM
    • Designed for DMMs, loggers, recorders and oscilloscopes
    • 40Hz to 10kHz response
    • 100mV AC/A AC – 10MV AC/A AC output signals
    • Designed to EN 61010, 600V, Cat. III safety standard
    • UL approved for Canada and United States
    • Double Insulation
    • CE Mark

    Applications

    • Measuring in breaker panels
    • Industrial loads
    • HVAC/R
    • Residential and commercial sites
    • 5A secondary current transformers (CTs) monitoring

    AEMC MN255 Specifications

    Nominal Range 20A & 200A
    Measurement Range 0.5 to 240A
    Transformation Ratio Voltage output
    Output Signal 20A: 100mV/A
    200A: 10mV/A
    Accuracy (20A Range) 1.0% of Reading ±50mV
    Phase Shift (20A Range) Not Specified
    Overload (20A Range) 24A for 10 min ON, 30 min OFF
    Accuracy (200A Range) 0.5 to 10A: 3.0% of Reading ± 5mV
    10 to 40A: 2.5% of Reading ± 5mV
    40 to 100A: 2.0% of Reading ± 5mV
    100 to 240A: 1.0% of Reading ± 5mV
    Phase Shift (200A Range) 0.5 to 10A: Not Specified
    10 to 40A: ≤5.0°
    40 to 100A: ≤3.0°
    100 to 240A: ≤2.5°
    Overload (200A Range) 240A for 10 min ON, 30 min OFF
    Frequency Range 40 to 10kHz
    Limit Operating Conditions 200A permanently to 1kHz
    Derating above 3kHz: 200A x (1/0.333F), F in kHz
    Crest Factor 3 at 200Arms with an error (due to CF) of 4%
    Working/Common Mode Voltage 600Vrms
    Output Termination 5ft Lead
    Click here for complete specifications on the AEMC MN255
