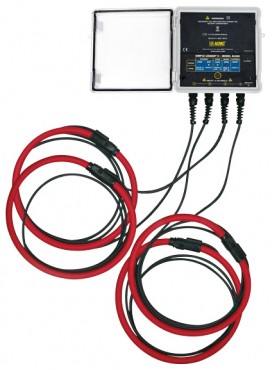

AEMC AL834 Simple Logger II AC Current Data Logger, 300/3000 A

Model: AL834 | Order No: 2126.14 | UPC: 685338140453

AEMC AL834 Simple Logger II AC Current Data Logger, 300/3000 A-


Downloads: datasheet manual

AEMC AL834 Simple Logger II AC Current Data Logger, 300/3000 A

Model: AL834 | Order No: 2126.14

Four-channel AC current data logger with four integral flexible current sensors. Features two measurement ranges of up to 30 and 3000A per channel and wireless Bluetooth data communication.

Four-channel AC current data logger with four integral flexible current sensors. Features two measurement ranges of up to 30 and 3000A per channel and wireless Bluetooth data communication.

Sale Price $1372.75 USD
Regular Price $1445.00 USD
Availability 1 to 2 Weeks
Quantity

AEMC AL834 Offers

The AL834 Simple Logger® II (Bluetooth Edition) has two measurement ranges of up to 300 and 3000 Amps. Both the data logger housing and the current sensors are water resistant rated to IP 65. A selection of data storage modes, as well as data sampling rates is user programmable through the DataView® application software provided. Up to 1,000,000 measurements can be stored in internal nonvolatile memory.

The Model AL834 is powered by four C cell alkaline batteries capable of providing six months or longer recording time. Data storage rates as fast as 8 per second are user programmable. Communication to the DataView® software is accomplished through wireless Bluetooth technology. The Bluetooth adapter, provided, facilitates this communication link.

Features

  • Includes four integral AmpFlex® flexible current probes that will measure up to 3000A TRMS with 0.1A resolution
  • Dual range 300/3000A user selectable per channel
  • 64 samples per cycle
  • Programmable storage rates from 125ms to 1 day
  • 4 user selectable storage modes
  • Stores up to 1,000,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries for a period of 180 days or more
  • Lightweight, compact, weatherproof
  • 6 LED indicators quickly and clearly display logger status
  • Wireless Bluetooth communication (Bluetooth Module included)
  • Includes FREE DataView® software for data storage, real-time waveform display analysis & report generation
  • EN 61010-1; 600V CAT IV, 1000V CAT III

Applications

  • Single/split phase and 3 phase monitoring
  • Neutral and ground current monitoring
  • Intermittent problem detection
  • Harmonic current monitoring using DataView® software
  • Machine load monitoring
  • Fault current detection
  • Load profiling

AEMC AL834 Specifications

Channels Four
Input Captive AmpFlex AC Current Flexible Sensors
Range 300A AC & 3000A AC
Accuracy (50/60Hz) 300A AC: 0 to 5A unspecified, 5 to 300A: ±(1% of Reading + 0.5A)
3000A AC: 0 to 15A unspecified, 15 to 3000A: ±(1% of Reading + 1A)
Resolution 300A AC: 0.1A AC
3000A AC: 0.5A AC
Sample Rate 64 samples/cycle
Storage Rate Programmable from 125ms to 1 per day
Storage Modes Start/Stop, FIFO, Extended Recording Mode (XRM), Store on Alarm
Recording Length 15 minutes to 8 weeks, programmable using DataView®
Memory 1,000,000 measurements (2MB)
The recorded data is stored in non-volatile memory and will be retained even if the battery is low or removed.
Communication Bluetooth (Class 2)
Click here for complete specifications on the AEMC AL834

What's included with the AEMC AL834

  • AL834 4-Channel AC Current Datalogger
  • Bluetooth USB adapter
  • Mounting hardware
  • DataView® software
  • 4 x 1.5V C-cell alkaline batteries
  • Manual
