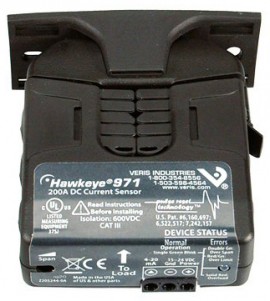

Veris H971 Current Sensor DC Split 0-200A Pulse Reset Bi-Directional
Downloads:
datasheet



Veris H971 Current Sensor DC Split 0-200A Pulse Reset Bi-Directional

Model: H971

The Hawkeye 971 Series provides accurate load level monitoring of DC current loads. Using new Pulse Reset Technology™ with proven transducer circuitry, the H971 provides a superior solution for applications involving DC currents. It has no risk of permanent magnetization, ensuring longer life than traditional Hall Effect sensors. The H971 has a user-adjustable span to allow greater application flexibility.

$123.12 USD

was $162.00

2 to 3 Weeks


Veris H971 Current Sensor DC Split 0-200A Pulse Reset Bi-Directional Offers

Features

  • New patented Pulse Reset Technology™ significantly increases accuracy...sensor is not affected by stray magnetic fields...no worry of magnetization from over-current faults
  • User-adjustable span from ±20A to ±200A
  • Self-gripping iris for easy installation
  • Status LED ensures proper wiring...easy set up
  • Mounting bracket can attach to housing in three places...installation flexibility
  • Bracket is compatible with the AH01 DIN rail clip...mount product onto standard DIN rail
  • 5-year limited warranty

Applications

Ideal for the following applications: Solar, Battery Chargers, Motor Armature Current, Motor Field Current, Automative Loads, Marine Equipment, Telecom
