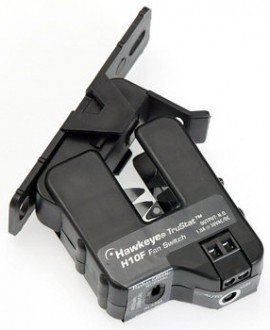

Veris H10F Current Switch Split Core Auto Set Fan

Model: H10F

Microprocessor based, self-learning, self-calibrating current switch. It provides calibration-free motor status, for both under-current and over-current (locked rotor) conditions.

$76.76 USD

was $101.00

2 to 3 Weeks


Veris H10F Current Switch Split Core Auto Set Fan Offers

The Hawkeye TruStat H10F is a microprocessor based, self-learning, self-calibrating current switch. It provides calibration-free motor status, for both under-current and over-current (locked rotor…) conditions. At initial power-up, the H10F automatically learns the average current on the line with no action required by the installer. Once a current is learned, the switch monitors for changes in current greater than ±20% of the learned load.

Features

  • Microcontroller based learning technology...automatically learns load upon initial power-up...eliminates labor associated with calibration
  • Monitors current for both under- and over-load in one package
  • Small size fits easily inside small starter enclosures...saves space
  • Automatic adjustable trip point (3.5-100A)
  • 100% solid state...no moving parts to fail
  • Removable mounting bracket for installation flexibility
  • 5-year warranty

Applications

Ideal for the following applications: Monitoring status of industrial process equipment, ± 20% of learned current, Verifying electrical service run times, Monitoring status of critical motors (compressor, fuel)
