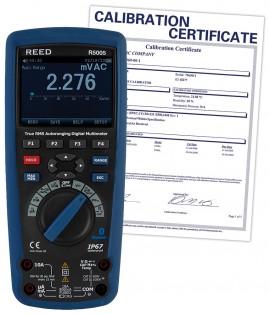

REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter, includes NIST Traceable Certification

Model: R5005-NIST

Precise True RMS multimeter with 50,000 count backlit display and digital analog bargraph. This product includes NIST Traceable Certificate with full Data and Uncertainties.

$469.00 USD

Availability: 3 in Stock

REED R5005-NIST Offers

The REED R5005 True RMS Industrial Multimeter is an full featured DMM capable of data logging and measuring multiple AC/DC signals simultaneously. With a large LCD screen, analog bargraph and bluetooth capability the R5005 measures AC/DC voltage and current, resistance, capacitance, frequency and temperature.

This product includes NIST Traceable Certification with full Data and Uncertainties.

Features

  • Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
  • Measure voltage and current simultaneously on a large backlit LCD
  • Record data and and review trends with included software
  • Relative, Peak, Min/Max and data hold functions
  • Waterproof (IP67) double molded plastic housing
  • Cat. IV 600V, Cat. III 1000V safety rating

REED R5005 Specifications

AC/DC Voltage
Range AC: 50, 500mV, 5, 50, 500, 1000V
DC: 50, 500mV, 5, 50, 500, 1000V
Accuracy AC: 50/60Hz ±(0.3% rdg. + 25 dgt.)
<1 Khz ±(0.5% rdg. + 25 dgt.)
<5Khz ±(3% rdg. + 25 dgt.)
DC: 50mV ±(0.5% rdg. + 20 dgt.)
500mV, 5,50,500V ±(0.025% rdg. + 5 dgt.)
1000V ±(0.1% rdg. + 5 dgt.)
Resolution AC: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V
DC: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V
AC/DC Current
Range 500, 5000µA, 50, 500mA, 10A
Accuracy AC: 50/60Hz ±(0.6% rdg. + 25 dgt.)
<1 Khz ±(1.5% rdg. + 25 dgt.)
<5Khz ±(3% rdg. + 25 dgt.)
DC: 500, 5000µA, 50mA ±(0.1% rdg. + 20 dgt.)
500mA ±(0.15% rdg. + 20 dgt.)
10A ±(0.3% rdg. + 20 dgt.)
Resolution 0.01, 0.1µA, 0.001, 0.01mA, 0.001A
Resistance
Range 50, 500Ω, 5, 50, 500kΩ, 5, 50MΩ
Accuracy 50Ω: ±(0.5% rdg. + 20 dgt.)
500Ω/ 5,50kΩ: ±(0.05% rdg. + 10 dgt.)
500kΩ: ±(0.1% rdg. + 10 dgt.)
5MΩ: ±(0.2% rdg. + 20 dgt.)
50MΩ: ±(2% rdg. + 20 dgt.)
Resolution 0.001, 0.01Ω, 0.0001, 0.001, 0.01kΩ, 0.01, 0.001MΩ
Capacitance
Range 5, 50, 500nF, 5, 50, 500µF, 10mF
Accuracy 5, 50,500nF, 5,50µF ±(2%+40 dgt.)
500µF, 10mF ±(5%+40 dgt.)
Resolution 0.001, 0.01, 0.1nF, 0.001, 0.01, 0.1µF, 0.01mF
Frequency
Range 50, 500Hz, 5, 50, 500kHz, 5, 10MHz
Accuracy ±(0.01%+10 dgt.)
Resolution 0.001, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001MHz
Temperature
Range -58 to 1832°F (-50 to 1000°C)
Accuracy ±(1.0% rdg. + 4.5°F)
±(1.0% rdg. + 2.5°C)
Resolution 1°F, 1°C
General Specifications
Range Selection Autoranging/Manual
True RMS Yes
Measure AC/DC signals simultaneously Yes
Display 50,000 count LCD display
Display Hold Yes
Max/Min Yes
Peak Hold Yes
Relative Mode Yes
Diode Test Yes
Recording Capabilities Yes (Over 2 hr recording time)
Wireless Connectivity Yes (Bluetooth via software)
Backlit Display Yes
Digital Analog Bargraph Yes
Continuity Check Audible signal if resistance ≤25Ω
Duty Cycle Yes (0.1 - 99.9%)
Kick Stand Yes
Auto Power Off Yes (after 15 minutes)
Power Supply Li-ion Rechargeable Battery
Low Battery Indicator Yes
Fuse Protection Yes
Replaceable Test Leads Yes
Software OS Compatibility Windows XP / 7 / 8 / 10
Overvoltage Category CAT. IV 600V, CAT. III 1000V
Product Certifications CE, IP67
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 8.7 x 3.8 x 2.4" (220 x 96 x 60mm)
Weight 22oz (631g)
Click here for complete specifications on the REED R5005-NIST

What's included with the REED R5005-NIST

  • TRMS Bluetooth/Waterproof Industrial Multimeter
  • NIST Traceable Certification
  • Test Leads
  • Type K Thermocouple Wire Probe
  • Thermocouple Adapter
  • Weatherproof plugs
  • Li-ion Battery
  • AC Adapter
  • Software
