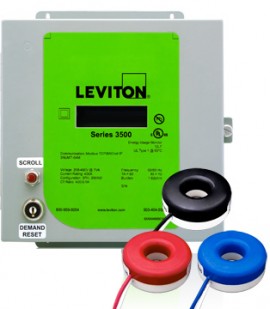

Leviton 3KUMT-4SM Indoor kWh Meter Kit, 400A with 3 Solid Core CTs

Model: 3KUMT-4SM

Features Multi-Function Universal Voltage of 208-480VAC, 3 Phase 3W/4W, and can be configured for Modbus TCP/BACnet IP.

$895.00 USD

2 to 3 Weeks


Leviton 3500 Series Offers

The Leviton Series 3500 Meter is a revenue grade kWh electrical meter featuring Time of Use (TOU) meter readings, per-phase meter data, and a user-friendly LCD display. The Series 3500 Meter is designed for use on both 3-phase, 3-wire (Delta) and 3-phase, 4-wire (WYE) circuits, and features multi-function universal voltage.

The Leviton Series 3500 Meter is a highly accurate, 0.5% accuracy class kWh/demand meter. Offering a full range of electrical parameter measurement—kVA and kVAR, PF, per phase voltage, etc., this meter is ideally suited to commercial and industrial applications where advanced communications protocols are demanded. As an Ethernet-enabled product, the Series 3500 meter can be configured for Modbus TCP/IP for easy integration into existing Modbus networks. The meter can also be configured for BACNet IP to meet the requirements of today's Direct Digital Control based Building Automation Systems. In addition to the advanced protocols, the Series 3500 Meter comes standard with an Isolated Pulse output as an additional communication capability.

A highly accurate, multi-function smart meter, the Leviton Series 3500 Meter offers seamless integration into the advanced building control and management systems in today's market.

Features

  • Series 3500: Enabled by Ethernet, uses Modbus TCP/IP and BACnet IP
  • Isolated pulse output
  • Integrates easily with building management systems
  • Highly accurate 0.5% accuracy class
  • Delivers universal voltage performance
  • 208/480V 2PH 2W, 120/208V 2PH 3W, 240/480V 3PH 3W, 120/208V, 277/480V 3PH 4W, 240/480V 3PH 4W DELTA
  • 100-5000 Amps
  • Outputs kWh, Demand - Instant & Peak, Per Phase & Total kWh, kW, kVAR, VAR, AMPS Interval Data
  • Certified to all applicable standards of ANSI C12.1
  • Utilizes split and solid core current transformers (CTs) that are certified to all revenue grade accuracy standards
  • Up to three sets of CTs per phase can be paralleled per meter

Applications

Ideal for the following applications: Load Profiling and Benchmarking, AMR/BAS/BMS/EMS Integration, Usage Aggregation, Tenant Cost Allocation, Measurement and Verification, Energy Conservation and Cost Reduction, Green Building Initiatives and Government Mandates.

Leviton 3500 Series Specifications

Supply Voltage Range (Line 1 to Line 2) 177-552VAC
Maximum Input Power 10.2 VA Max
Maximum Rated Current Primary: Max Rated Current +10%, Secondary: 0.11A
Line Frequency 60Hz
Power Factor Range 0.5 to 1.0 Leading or Lagging
Meter Operating Temperature Range -22° to 140°F (-30°C to 60°C)
Display Operating Temperature Range -4°F to 122°F (-20°C to 50°C)
Click here for complete specifications on the Leviton 3KUMT-4SM
