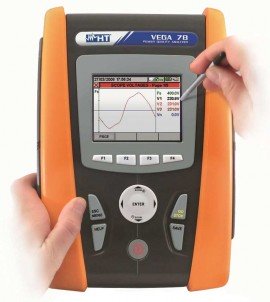

HT Instruments VEGA78 CAT IV Power Quality Analyzer and Energy Logger with 4 CTs, HTFLEX33D



HT Instruments VEGA78 CAT IV Power Quality Analyzer and Energy Logger with 4 CTs, HTFLEX33D

Model: VEGA 78

Use to test and analyze quality of the electric service provided by the Electric Power Supplier, for analyzing single-phase and three-phase electric users such as offices and plants.

$2,995.00 USD

2 to 3 Weeks


HT Instruments VEGA78 CAT IV Power Quality Analyzer and Energy Logger with 4 CTs HTFLEX33D Offers

Carry out analysis and tests on single-phase and three-phase electric systems with and without a neutral with the VEGA78. Display in real time the values of all fundamental electric quantities which characterize the electric system being tested (voltage, current, active power, reactive power, apparent power, power factor) showing the waveforms of voltages and currents.

Features

  • TRMS current on phases and neutral (4inputs)
  • Active, reactive and apparent powers measures
  • Active, reactive and apparent energies measures
  • Power factors measure
  • Frequency measure
  • Max 251 selected parameters at the same time
  • Integrated period selectable from 1s to 60min
  • Harmonic analysis of voltage and current up to 49th component
  • Voltage anomalies (sags, swells) with 10ms resolution
  • Numerical and graphical (waveforms) visualization
  • Histogram visualization of harmonic analysis
  • Vectorial diagram of voltages and currents
  • Voltage unbalance
  • Predefined recordings of parameters
  • TFT colour display with "touch screen"
  • 15Mbytes internal memory for recordings saving
  • Using of external compact flash and USB pen drives
  • USB interface for PC connection
  • Windows software for recordings analysis
  • Rechargeable Li-Ion battery and external AC/D adapter
  • Contextual help selectable on each screen
  • Virtual keyboard at display

Applications

Ideal for the following applications: Testing and analyzing quality of the electric service provided by the Electric Power Supplier, analyzing single-phase and three-phase electric users such as offices and industries, and diagnosing voltage anomalies.

HT Instruments VEGA78 Specifications

Display  Graphic TFT with backlight (320 x 240)
Integration Period  1, 2, 5, 10, 30 seconds, 1, 2, 5, 10, 15, 30, 60 minutes
Values Saved  Saves MIN, AVG and MAX values
Max Parameter Storage  251
Memory  3 months @ 251 parameters and integration period = 15 min
Internal Memory  15 Mbyte
Safety  IEC/EN61010-1, IEC/EN61010-031, IEC/EN61010-2-032
Overvoltage Category  CAT IV 600V to ground, max 1000V between inputs

What's included with the VEGA78

  • VEGA78 Power Quality Analyzer and Energy Logger
  • Set of 5 cables + 5 alligator clips
  • Flexible clamp 3000A AC, diameter 174mm, 4 pcs
  • External adapter AC/DC recharging battery
  • Li-ION rechargeable battery
  • Touch pen
  • Windows software + USB cable C2007
  • Soft carrying bag
  • User manual on CD-ROM
  • Quick reference guide
  • ISO9000 calibration certificate
