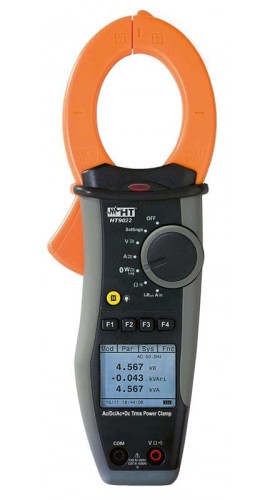

HT Instruments HT9022 Power Quality Logger Clamp Meter with Bluetooth



HT Instruments HT9022 Power Quality Logger Clamp Meter with Bluetooth

Model: HT9022

This four-in-one meter troubleshoots power quality problems, calculates power factor, records energy consumption and DC power.

$695.00 USD

2 to 3 Weeks


HT Instruments HT9022 Power Quality Logger Clamp Meter Offers

Simultaneously record Power AC/DC, Voltage, Current, Power Factor, Cosphi, Harmonics and THD%. This power logger meter combines a power quality analyzer, a phase sequence/conformity detector, a clamp meter and a voltage detector in one single device.

Features

  • DC, AC + DC TRMS current up to 1000A
  • DC, AC + DC TRMS voltage up to 1000V
  • Resistance and continuity test
  • Frequency with test leads
  • Frequency with jaws
  • Phase sequence / 1 wire phase correlation
  • DC Power
  • Active, Reactive, Apparent power on Single phase systems
  • Active, Reactive energy on Single phase systems
  • Power Factor on Single phase systems
  • Harmonic voltage/current up to 25th with THD% calculation
  • Inrush current
  • Data logger with programmable IP
  • Autoranging
  • Backlight
  • Auto Power OFF
  • Data HOLD
  • MAX/MIN/CREST
  • PC connection via Bluetooth
  • Connection with Android devices
  • CAT IV 600V

Applications

Ideal for the following applications: Troubleshoot power quality problems, calculate power factor correctors, record energy consumption, record DC power.

HT Instruments HT9022 Specifications

Number of Saved Parameters   60
Integration Period  1, 5, 10, 30, 60, 120, 300, 600 or 900s programmable
Display  Graphic dot matrix, 128x128pxl with backlight
Sample Rate  128 samples/period (@ 50Hz)
DC Voltage
Range 0.5 ÷ 999.9V
Resolution 0.1V
Accuracy ±(1.0%rdg + 4dgt)
Input impedance 2.6MΩ
Overload protection 1000VDC/ACrms
DC Current
Range 0.5 ÷ 999.9A
Resolution 0.1A
Accuracy ±(2.0%rdg + 5dgt)
Overload protection 2000ADC/ACrms
Resistance and Continuity Test
Range 0.0Ω ÷ 59.9kΩ
Resolution 0.1Ω
Accuracy ±(1.0%rdg + 5dgt)
Overload protection 1000VDC/ACrms x 60s

What's included with the HT9022

  • HT9022 Power Quality Logger Clamp Meter
  • 2 - Test Leads
  • 2 - Alligator Clips
  • Carrying Bag
  • Topviews - PC Windows Software
  • Batteries
  • ISO9000 Calibration Certificate
  • User manual on CD
  • Quick reference guide
