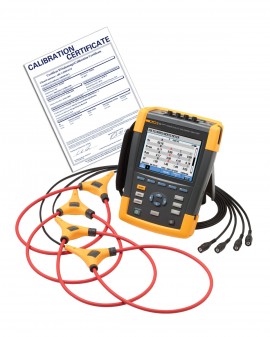

Fluke 435-II-NIST Power Quality Analyzer with NIST Traceable Certificate

Model: 435-II-NIST

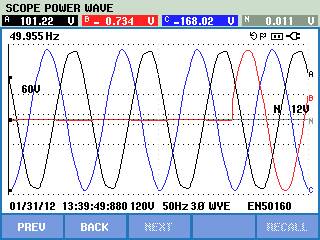

Power quality analyzer is capable of advanced energy monetization, load studies and PowerWave data capture. Comes with NIST calibration.

$8,314.99 USD

2 to 3 Weeks



Fluke 435-II-NIST Offers

Features

  • These power quality and energy analyzers help locate and predict, prevent and troubleshoot power quality problems in three-phase and single-phase power distribution systems
  • Energy Loss Calculator: classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars
  • Power Inverter Efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
  • Troubleshoot Real-time: Analyze trends using cursors and zoom tools
  • Measure all Three Phases and Neutral: With included flexible current probes (4) with enhanced thin flex designed to fit into the tightest places
  • Automatic Trending: Every measurement is always automatically recorded, without any set-up

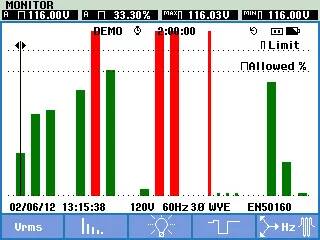

  • System Monitor: Ten power quality parameters on one screen according to EN61060 power quality standard
  • Logger Function: Configure for any test condition with memory for up to 600 parameters at user defined intervals
  • View Graphs and Generate Reports: With included analysis software
  • Battery Life: Seven hours of operating time per charge on Li-ion battery pack
  • Automatic Transient Mode: Capture 200kHz waveform data on all phases simultaneously up to 6kV
  • Fully Class A Compliant: Conduct tests according to stringent international IEC 61000-4-30 Class A standard
  • Mains Signalling: Measure interference from ripple control signals at specific frequencies

Voltage Measurements

  • Measuring Ranges: Vrms (AC+DC): 1 to 1000V; Vpk: 1 to 1400Vpk; Volt CF: 1.0 > 2.8
  • Resolution: Vrms (AC+DC): 0.01V; Vpk: 1V; Voltage Crest Factor: 0.01
  • Accuracy: Vrms (AC+DC): ± 0.5% of nominal range; Vpk: ± 0.1% of nominal range; Volt CF: ± 5%;M

Amp Measurements

  • Measuring Ranges: Amps (AC+DC): 5 to 6000A; Apk: 8400Apk; Amp Crest Factor: 1 to 10; Amps½: 5 to 6000A; Afund: 5 to 6000A
  • Resolution: Amps (AC+DC): 1A; Apk: 1Arms; Amp Crest Factor: 0.01; Amps½: 1A; Afund: 1A
  • Accuracy: Amps (AC+DC): ± 0.5% ± counts; Apk: ± 5%; Amp Crest Factor: ± 5%; Amps½: ± 1% ± 10 counts; Afund: ± 0.5% ± counts

Harmonics Measurements

  • Voltage Harmonic Ranges: %of: 0.0 to 100%; %or: 0.0 to 100%; Absolute: 0.0 to 1000V; THD: 0.0 to 100%
  • Volt Resolution: %of: 0.1%; %or: 0.1%; Absolute: 0.1V; THD: 0.1%
  • Volt Accuracy: %of: ± 0.1% ± n x 0.1%; %or: ± 0.1% ± n x 0.4%; Absolute: ± 5%; THD: ± 2.5%
  • Amp Harmonic Ranges: %of: 0.0 to 100%; %or: 0.0 to 100%; Absolute: 0.0 to 600A; THD: 0.0 to 100%
  • Amp Resolution: %of: 0.1%; %or: 0.1%; Absolute: 0.1A; THD: 0.1%
  • Amp Accuracy: %of: ± 0.1% ± n x 0.1%; %or: ± 0.1% ± n x 0.4%; Absolute: ± 5% ± 5 counts; THD: ± 2.5%
