Extech 380363 Digital High Voltage Insulation Tester, 10MΩ
Downloads:
datasheet



Extech 380363 Digital High Voltage Insulation Tester, 10MΩ

Model: 380363

Autoranging insulation measurements to 10MΩ plus manual datalogging.

$289.99 USD

2 to 3 Weeks

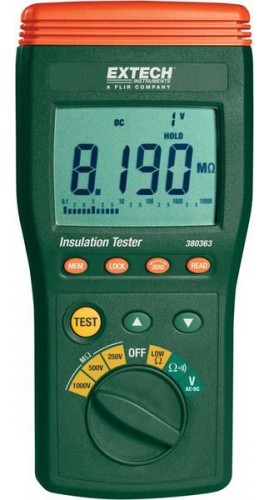

Extech 380363 Digital Insulation Tester

Digital Insulation Tester

Autoranging insulation measurements to 10G

Plus manual datalogging stores up to 9 data sets

Key Features:

  • 250V, 500V and 1000V test voltages
  • Measure Insulation Resistance to 10G
  • Large LCD display with analog bargraph
  • Lo ohms function for testing connections
  • Automatic discharge of capacitive voltage charges
  • AC/DC voltage measurement up to 999V
  • Auto power off
  • Manual data record and read function (9 sets)
  • Live circuit display warning and beeper
  • Complete with carrying case, test leads, and 6 x AA batteries
General
Insulation Resistance4MΩ 40MΩ 400MΩ 4000MΩ 10GΩ
Max Resolution1kΩ
Basic Accuracy±3%
Insulation Test Voltages250V 500V 1000V
AC Voltage TestYes
Low Resistance TestYes
Power source6 x AA batteries
Dimensions9.3x4.6x2.1" (235x116x54mm)
Weight1.15lbs (520g)
Click here for complete specifications on the Extech 380363
What's in the box:

Complete with carrying case, test leads, and 6 x AA batteries
