Amprobe DM-5 Power Quality Analyzer
Downloads:
datasheet

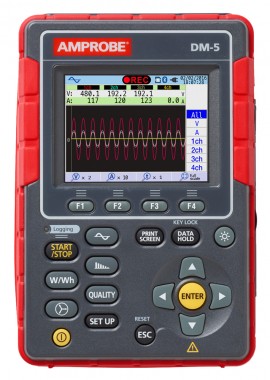

Amprobe DM-5 Power Quality Analyzer

Model: DM-5

This Power Quality Analyzer can be used to quickly and easily discover the origin and extent of power quality issues. At half the size of previous models, the compact DM-5 brings speed and efficiency to power quality jobs ranging from routine maintenance to in plant troubleshooting of power distribution panels and individual machinery. Built for use in even the largest facilities.

$4,495.95 USD

2 to 3 Weeks


Amprobe DM-5 Offers

Poor power quality is expensive – not only can it increase energy bills with excessive power usage, but damage or equipment failure caused by poor power quality is costly and time consuming to diagnose and repair. Productivity and process also suffer with faulty equipment or unexpected outages.

Highlights

  • Simultaneously measures power, harmonics, waveform, power quality (voltage: 3-channel, current: 4-channel)
  • Measures single and three-phase power system with 10 selectable wiring connection settings
  • Test parameters voltage, current, active/reactive/apparent power, PF and frequency all on one screen
  • Quick start mode, wiring check and auto current sensor detection for quick, accurate measurements
  • Automatic recording with memory for up to 1,000 parameters at user defined intervals
  • Energy consumption check: Trend and demand graphs for easy view
  • Power quality events: Swell, Dip, Interruption, transients, Inrush current, and flicker
  • Real-time remote monitoring on compatible PC and Android devices via Bluetooth communication
  • Comes complete with measurement accessories
  • Safety rated CAT IV 300 V, CAT III 600 V, CAT II 1000 V

Features


Real-Time Checks with Large, Full-Color Screen. During and after measurements, the on-board screen displays data graphs and values in full color for easy comparison. Additionally, the Print Screen quick-button makes it simple to save momentary readings for later comparison.


Quick Setup with On-Screen Guide. A step-by-step setup guide helps ensure you capture the right measurements. Simply select the parameters to test, follow the on-screen guide for wiring configuration, and be alerted to any incorrect settings before testing begins.


Wireless Control for Remote Checks and Adjustments. Adjust settings and transfer data remotely by connecting the DM-5 to compatible Bluetooth® enabled Windows® and Android® devices. This provides added convenience and safety, allowing for easy testing modifications even when the main unit is in difficult to access locations.


Full Analysis with Included Software Quickly analyze your recorded data to identify potential issues with report generation and data visualization.


Complete Power Quality Kit. The DM-5 comes complete with the accessories needed to quickly get to work.

Applications

  • Harmonics
    Harmonics often cause tripped circuit breakers, blown fuses, irregular electrical noises and overheating of electrical systems. Use the DM-5 to identify problematic harmonics, evaluate both the magnitude of harmonic frequencies present and the amount of total harmonic distortion.
  • Pinpoint Transients
    Transients can cause problems ranging from simple equipment malfunction to full equipment failure. Recording data over a prolonged period can help isolate when and where infrequent transients occur, helping identify root causes ranging from nearby lightning strikes to the switching of loads.
  • Analyze Power Efficiency
    With the DM-5, you can simultaneously measure up to 1,000 parameters to analyze wherever excessive power loss or other power problems may exist.
  • Capture Sags and Swells
    The high performance processor of the DM-5 captures sags and swells, common causes of equipment failure and irregular electrical noises.
  • Monitor Voltage Unbalance
    Monitoring for unbalance with the DM-5 can help identify issues before they result in costly equipment damage. Unbalance often causes excessive overheating, leading to motor failure and other problems within distribution systems.

Amprobe DM-5 Specifications

Wiring connection 1P2W, 1P3W, 3P3W, 3P4W
Display 3.5inch, TFT, QVGA(320xRGBx240)
Display update Every 1 second - There may be time lag in display update (max. 2 seconds) due to arithmetic processing. However, no time lab between the recorded data and the time stamp
Operating temperature and humidity 32°F to 113°F (0°C to 40°C), ≤ 85 %RH (no condensation)
Guaranteed accuracy at 73°F ± 9°F (23°C ± 5°C), ≤ 85 %RH (no condensation)
Operating altitude 0 to 2000m
Dust/water proof IP 40
Drop proof 1m
Power supply Battery: 6 x AA 1.5V Alkaline battery (LR6)
AC power supply: AC100V to AC 240V, 50Hz to 60Hz, 7 VAmax.
Battery life 3 hours with backlight off (typical)
Current consumption: 1.0A at 3.0Vdc (typical)
EMC Meets EN 61326-1
Safety compliance UL/IEC 61010-1, IEC 61010-031, IEC 61010-2-030
Power quality measurement Complies with IEC 61000-4-030 ed.2 Class S
Dimensions (L x W x D) 6.9 x 4.7 x 2.7in (175 x 120 x 68mm)
Weight Approx. 900g (2.0lb) with batteries installed
Click here for complete specifications on the Amprobe DM-5

What's included with the Amprobe DM-5

  • DM-5 Power Quality Analyzer
  • US power cord
  • CT-53 flex AC current clamp
  • CT-500 flex AC current clamp
  • SD card
  • User manual
  • PC software
  • AA batteries (6)

Accessories

Click on a category to view a selection of compatible accessories with the Amprobe DM-5 Power Quality Analyzer.

Amprobe TL-DM-5 Test Lead Set With Alligator Clips TL-DM-5 88756
Set of 4 coloured test leads for use with the Amprobe DM-5 Power Quality Analyzer.
$79.95 USD

Learn More

Amprobe CT-53 Flex Current Sensor, 3000A CT-53 88752
Flexible 3-Sensor Current Transducer with Selectable Input Range for use with the Amprobe DM-5 Power Quality Analyzer.
$1,495.95 USD

Learn More

Amprobe CT-500 Flex Current Sensor, 1000A CT-500 88753
Flexible Neutral Current Transducer for use with the Amprobe DM-5 Power Quality Analyzer.
$499.95 USD

Learn More

Amprobe PC-5 Power Adapter PC-5 88754
AC Line Power Adaptor for use with the Amprobe DM-5 Power Quality Analyzer.
$199.95 USD

Learn More

Amprobe CC-5 Carrying Case With Magnet for DM-5 CC-5 88755
Designed for use with the Amprobe DM-5 Power Quality Analyzer. Allows acess to display and pluggable connections.
$199.00 USD

Learn More
