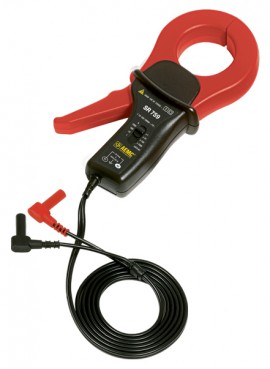

AEMC SR759 AC Current Probe, Lead, 1/10/100/1000A/1V
Downloads:
datasheet manual



AEMC SR759 AC Current Probe, Lead, 1/10/100/1000A/1V

Model: SR759 | Order No: 2116.33

This Current Probe is designed for use in utility and industrial environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is assembled to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States.

$329.00 USD

1 Week

Add In House NIST Traceable Calibration to your SR759

Clear selected options


AEMC SR759 Offers

This range selectable probe offers four switch selectable ranges: 1, 10, 100 or 1000A. This probe has a voltage output proportional to the current measured in the jaw of the probe. The SR759 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs compatible with DMMs and other instruments. The high accuracy, high sensitivity and low phase shift makes this probe an excellent choice for use in a wide range of power quality applications, including very low or leakage current measurements.

Features

  • Measurement range of 1mA to 1200AAC
  • Large jaw opening accommodates conductors up to two 500kcmil
  • Improved ergonomic design and easy operation
  • High content nickel metal core
  • Conforms to EN 61010, 600V CAT III
  • Low phase shift for power measurement
  • Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

Applications

  • Power quality measuring
  • Large industrial loads
  • Measuring around cable bundles
  • Power load monitoring
  • Waveform analysis

AEMC SR759 Specifications

Nominal Range 1A, 10A, 100A, 1000A
Measurement Range 1mA to 1200A
Transformation Ratio Voltage output
Output Signal 1A: 1000mV
10A: 100mV
100A: 10mV
1000A: 1mV/A AC
Accuracy (1A Range) 0.001 to 0.1A: 3% of Reading ± 1mV
0.1 to 1A: 0.7% of Reading ± 1mV
Phase Shift (1A Range) 0.1 to 1A: <10°
Accuracy (10A Range) 0.01 to 0.1A: 1% of Reading ± 0.2mV
0.1 to 1A: 0.5% of Reading ± 0.2mV
1 to 10A: <0.5% of Reading
Phase Shift (10A Range) 0.1 to 1A: <5°
1 to 10A: <2°
Accuracy (100A Range) 0.1 to 1A: 1% of Reading ± 0.2mV
1 to 10A: 0.5% of Reading ± 0.2mV
10 to 100A: 0.3% of Reading
Phase Shift (100A Range) 1 to 10A: <2°
10 to 100A: <1°
Accuracy (1000A Range) 1 to 10A: 1% of Reading ± 0.2mV
10 to 100A: 0.5% of Reading ± 0.2mV
100 to 1000A: 0.2% of Reading
100 to 1200A: 0.2% of Reading
Phase Shift (1000A Range) 1 to 10A: <2°
10 to 100A: <2°
1000 to 1200A: <1°
Overload 1.2A Arms continuous
12A Arms continuous
120A Arms continuous
1200A Arms for five min
Frequency Range 30 to 3000Hz
Current derating above 1kHz using the formula: 1000A x 1F (in kHz)
Load Impedance 100kΩ min
Working/Common Mode Voltage 600Vrms Cat. III
Output Termination 5ft Lead
Click here for complete specifications on the AEMC SR759
