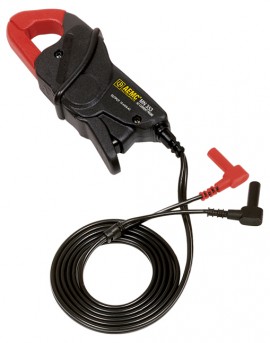

AEMC MN353 AC Current Probe, Lead, 10mV/A, 150A

Model: MN353 | Order No: 2116.27

Designed to meet the most stringent demands in industry and electrical contracting, they also meet the latest safety and performance standards. Features a measurement range of 0.1 to 150A and a large jaw opening accommodates conductors up to 250kcmil.

$189.00 USD

4 to 5 Weeks

Add In House NIST Traceable Calibration to your MN353

Clear selected options


AEMC MN353 Offers

The MN353 is a high accuracy and low phase shift AC current probe with voltage output. It is designed for use with DMMs or current measuring instruments with voltage inputs. The voltage output is proportional to the current measured (through the jaws). The MN353 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.

Features

  • Small, compact size
  • Large jaw opening accommodated conductors up to 250kcmil
  • Designed for DMMs, loggers, recorders and oscilloscopes
  • Conforms to EN 61010, 600V CAT III

Applications

  • Measuring in breaker panels
  • Industrial loads
  • HVAC
  • Residential and commercial sites
  • 5A secondary current transformers (CTs) monitoring

AEMC MN353 Specifications

Nominal Range 150A
Measurement Range 0.1 to 150A
Transformation Ratio Voltage output
Output Signal 10mV/A (1V at 100A AC)
Accuracy (150A Range) 0.1 to 1A: ≤3% of Reading ± 200µV
1 to 80A: 1% of Reading ± 0.2mV
80 to 150A: 1.5% of Reading ± 0.2mV
Phase Shift (150A Range) 1 to 20A: ≤3.0°
20 to 100A: ≤2.0°
100 to 150A: ≤2.5°
Overload 240A for 10 min ON, 30 min OFF
Frequency Range 40 to 10kHz
Limit Operating 200A permanently to 1kHz
Derating above 3kHz: 200A x (1/0.333F), F in kHz to 1kHz
Crest Factor 3 at 150A Peak with an error (due to CF) of 3%
Working/Common Mode Voltage 600Vrms
Output Termination 5ft Lead
