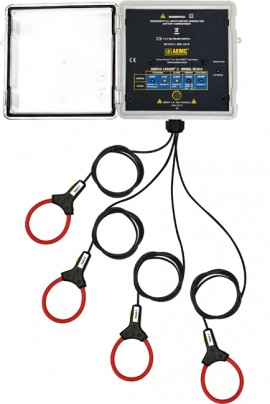

The Simple Logger® II (Bluetooth Edition) Model ML914 is a 4-channel AC current recording device powered by alkaline batteries and includes four integral 6" MiniFlex® flexible current probes. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed around the nominal line frequency (50 or 60Hz). Harmonic measurements are calculated from these 64 samples and are only available from the Simple Logger® II Control Panel within the DataView® software.
The Simple Logger® II stores TRMS at user programmable rates of up to eight times per second. TRMS calculations are performed on a single line cycle. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.
Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information Bluetooth communication provides for the transfer of data from the instrument's internal memory to the computer for analysis.
|Input||6" Captive MiniFlex® flexible sensors – AC Current|
|Range and Accuracy||100A AC: 0 to 1A unspecified
1 to 100A: ±(1% of Reading + 0.5A)
1000A AC: 0 to 5A unspecified 5 to 1000A: ±(1% of Reading + 1A)
|Sample Rate||64 samples/cycle|
|Storage Rate||Programmable from 125ms to 1 per day|
|Storage Modes||Start/Stop, FIFO, Extended Recording Mode (XRM™)|
|Recording Length||15 minutes to 8 weeks, programmable using DataView®|
|Memory||1,000,000 measurements (2MB)
Data stored in non-volatile memory and retained if the battery is low or removed
|Communication||Bluetooth (Class 2)|
|Power Source||4 x 1.5V C-cell Alkaline batteries (included)|
|Battery Life||Up to 180 days (dependent on storage rate/recording length)|
