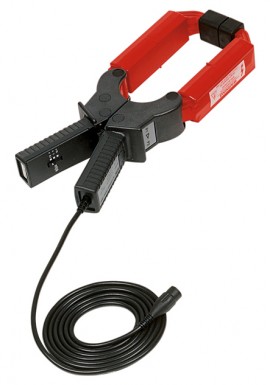

AEMC JM861 AC Current Probe, BNC, 30A/300A/3000A
Downloads:
datasheet manual



AEMC JM861 AC Current Probe, BNC, 30A/300A/3000A

Model: JM861 | Order No: 2110.90

Oscilloscope current probe for applications in industrial and power environments. Analyze, measure and accurately display distorted current waveforms and harmonics.

$550.00 USD

1 to 2 Weeks

Add In House NIST Traceable Calibration to your JM861

Clear selected options


AEMC JM861 Offers

The Model JM861 is designed for oscilloscopes, waveform displaying instruments and other instruments able to benefit from its frequency response. The Model JM861 encompasses a special circuit and three ranges to maximize frequency response performance. Accurately measures AC current waveforms and has proportional mV output for direct readings on oscilloscopes. Three-position slide switch on the handle selects ranges. Large jaw window enables use on cables and bus bars.

Features

  • Nominal range: up to 3000A AC (continuous cycle for the full temperature range)
  • Transformation ratio: 3000:3
  • Output: 1mA/A
  • Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges

Applications

  • Electrical utility
  • HVAC
  • Industrial maintenance
  • Laboratory
  • Plant maintenance
  • Power quality

AEMC JM861 Specifications

Nominal Range 3000A
Measurement Range 1 to 3600A
Transformation Ratio 3000:3
Output Signal 1mA AC/A AC (3A at 3000A)
Accuracy (1000A Range) 150A: 1.5% of Reading
600A: 0.75% of Reading
3000A: 0.5% of Reading
Phase Shift (1000A Range) 150A: 1.5°
600A: 0.75°; 3000A: 0.5°
Overload 3600A for 5 min
Frequency Range 30Hz to 5kHz
Current derating above 1kHz for continuous use
Load Impedance ≤0.6Ω
Working/Common Mode Voltage 600V AC
Output Termination 5ft Lead
Click here for complete specifications on the AEMC JM861
