Model: 8336 w/4 193-24-BK | Order No: 2136.31

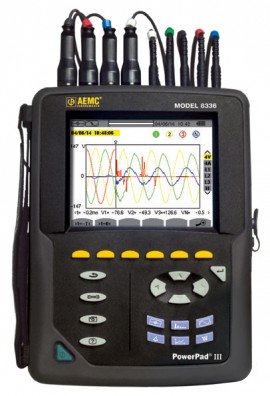

An easy to use three-phase power quality analyzer with five voltage and four current input terminals. Featuring 2 GB of memory for trend data storage and additional memory for: up to 50 snapshots, 210 captured transients/inrush and 10,000 alarm events. Three 24" AmpFlex flexible sensors are included.
The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.
The Model 8336 has 2GB of memory available for storing trend data. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored.
Four 24" AmpFlex flexible sensors are included.
|Input Terminals||5 voltage / 4 current|
|Inputs||4 voltage / 4 current|
|Voltage (TRMS AC+DC)||2 to 1000V|
|Voltage Ratio||Up to 500kV|
|Current (TRMS AC+DC)||MN93: 500mA to 200A AC
MN193: 0.005 to 100A AC
SR193 Clamp: 1A to 1000A AC
AmpFlex ® or MA193 Clamps: 100mA to 10000A AC
MR193 Clamp: 1A to 1300A AC/DC
SL261 Clamp: 50mA to 100A AC/DC
Current Ratio: up to 60kV
|Frequency (Hz)||40 to 69Hz|
|Distribution Systems||1P 2W, 1P 3W, 2P 2W, 2P 3W, 2P 4W, 3P 3W, 3P 4W
and 3p 5W, 2 1/2 Element & Aron meters
|Power Values||W, VA, var, VAD, PF, DPF, cos Φ, tan Φ|
|Energy Values||Wh, VARh, VAh, VADh|
|Harmonics||1st to 50th, Direction, Sequence
THD: 0 to 50, phase
|Transients||up to 210|
|Flicker (Pst & Plt)||Yes|
|Inrush Mode||Yes, >10 min|
|Alarm Mode||40 types; 10,000 recorded|
|Display||Color 1/4 VGA TFT screen (320 x 240) diagonal 148mm|
|Electrical Safety||IEC 61010, 1000V CAT III / 600V CAT IV|
|Languages||More than 27|
|Battery Life||>13 hrs, 25 hrs in Record Mode|
|Power Supply||9.6V NiMH rechargeable battery pack (included)
External AC supply: 110/230V AC ±10% (50/60Hz)
|Dimensions / Weight||9.8 x 7.8 x 2.6" (240 x 180 x 55mm) / 4.3 lbs (1.95kg)|
Click on a category to view a selection of compatible accessories with the AEMC 8336 PowerPad III Power Quality Analyzer with AmpFlex Sensors, 24".
