AEMC 8333 PowerPad III Power Quality Analyzer with Three Current Probes
Downloads:
datasheet manual

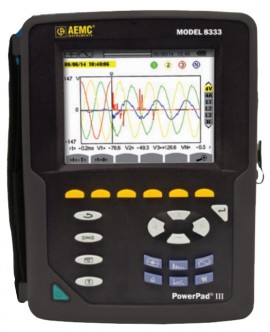

AEMC 8333 PowerPad III Power Quality Analyzer with Three Current Probes

Model: 8333 w/3 MN193-BK | Order No: 2136.12

An easy to use three-phase power quality analyzer with four voltage and three current input terminals. Featuring 2 GB of memory for trend recordings, as well as up to 12 snapshots, 51 captured transients and 4000 alarm events. Three MN193 current probes are included.

$4,195.00 USD

2 to 3 Weeks

Add In House NIST Traceable Calibration to your 2136.12

Clear selected options


AEMC 8333 w/3 MN193-BK Offers

The PowerPad® III Model 8333 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on single- or three-phase networks. Three current and four voltage input terminals are provided are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.

The Model 8333 has memory available for storing trend data, alarms, transients, and snapshot data. The user can store up to 12 screen snapshots, up to 51 captured transients that contain four cycles for each active input, and 4,000 alarm events from up to 10 different parameters. Trend data can also be recorded for days, weeks or even months.

Three MN193 current probes are included.

Features

  • Measurement of TRMS voltages up to 1000Vrms AC / 1200V DC for single or three phase networks
  • Measurement of TRMS currents up to 10kArms (sensor dependent)
  • Measures up to 5000ADC with the AC/DC Current Probe Model J93
  • Calculation of neutral current and voltage
  • Frequency measurement (40 to 70Hz systems)
  • Records and displays trend data as fast as once per second for one month up to 29 variables
  • Captures up to 51 transient occurrences on all V and A inputs
  • Measures harmonics (referenced to the fundamental or RMS value) for voltage, current or power up to the 50th harmonic
  • Recording, time stamping and characterization of disturbances (swells, sages and interruptions, exceedance of power and harmonic thresholds)
  • Measures energy VAh, VARh & Wh and reports quantities according to IEEE 1459 standards (P; Q1; D; N; S)
  • 65&micrp;s/sample transient recording
  • FREE DataView® software is included for configuring real-time display and report generation

Applications

  • Verification of power distribution circuits
  • In-plant troubleshooting of power distribution panels and individual machinery
  • Monitor pad mount transformers and phase unbalances
  • Determine harmonic problems originating from source or load
  • Determine transformer K-Factor
  • Energy metering (kVAh, VARh, kWh)

AEMC 8336 Specifications

Input Terminals 5 voltage / 4 current
Inputs 4 voltage / 4 current
Voltage (TRMS AC+DC) 2 to 1000V
Voltage Ratio up to 500kV
Current (TRMS AC+DC) MN93: 500mA to 200A AC
MN193: 0.005 to 100A AC
SR193 Clamp: 1A to 1000A AC
AmpFlex ® or MA193 Clamps: 100mA to 10000A AC
MR193 Clamp: 1A to 1300A AC/DC
SL261 Clamp: 50mA to 100A AC/DC
Current Ratio: up to 60kV
Frequency (Hz) 40 to 69Hz
Distribution Systems 1P 2W, 1P 3W, 2P 2W, 2P 3W, 2P 4W, 3P 3W, 3P 4W
and 3p 5W, 2 1/2 Element & Aron meters
Power Values W, VA, var, VAD, PF, DPF, cos Φ, tan Φ
Energy Values Wh, VARh, VAh, VADh
Harmonics 1st to 50th, Direction, Sequence
THD: 0 to 50, phase
Transients Up to 210
Flicker (Pst & Plt) Yes
Inrush Mode Yes, >10 min
Unbalance Yes
Recording Yes
Alarm Mode 40 types; 10,000 recorded
Peak Yes
Phasor Display Automatic
Display Color 1/4 VGA TFT screen (320 x 240) diagonal 148mm
Snapshots 50
Electrical Safety IEC 61010, 1000V CAT III / 600V CAT IV
Protection IP50
Languages More than 27
Communication Interface USB
Battery Life >13 hrs, 25 hrs in Record Mode
Power Supply 9.6V NiMH rechargeable battery pack (included)
External AC supply: 110/230V AC ±10% (50/60Hz)
Dimensions / Weight 9.8 x 7.8 x 2.6" (240 x 180 x 55mm) / 4.3 lbs (1.95kg)
Click here for complete specifications on the AEMC 8333 w/3 MN193-BK

What's included with the AEMC 8333 w/3 MN193-BK

  • 8333 PowerPad III Power Quality Analyzer
  • 3 x MN193 current probes
  • Extra large tool bag
  • Soft carrying pouch
  • 5ft USB cable
  • 4 x 10ft black voltage leads with alligator clips
  • 12 x color-coded input ID markers
  • Power adapter 110/230V with US power cord
  • 9.6V NiMH battery
  • SD-Card
  • Quick start guide
  • USB stick containing DataView software and manual
