Model: 8220 w/193-24-BK | Order No: 2130.93

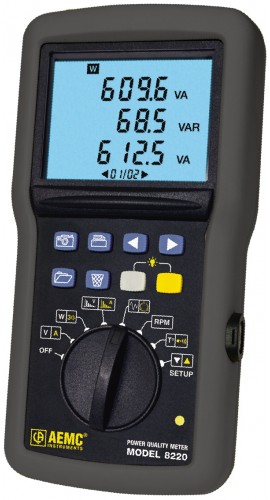

Designed as a power and energy datalogger to record electrical parameters, distribution network disturbances and machinery in operation. Features on-board datalogging, software and large backlit display. Includes a 193-24-BK (AmpFlex 6500A) sensor.
AEMC 8220 Single Phase Power Analyzer is a measurement tool for electrical parameters and distribution network disturbances, enabling the user to obtain instant measurements of the main characteristics of a single-phase network (voltage, current, power, voltage and current harmonics, etc.) and to monitor machinery in operation (temperature, inrush current and duration of operation, distance of windings and rotational speed).
It is capable of AC/DC measurements and features an electroluminescent backlit digital display and is rated to 600V Cat III.
The accuracy is better than 1% (excluding current sensors). It has a great flexibility due to AEMC's range of current sensors, measuring from a few hundred milliamps to several thousand amps. See the available kits below that include current transformers.
This Single Phase Power Analyzer is designed for technicians, control and maintenance engineers, as well as electrical contractors and educators.
|Voltage (TRMS)||Phase-to-Phase: 660V
|Current (TRMS)||MN Clamp: 5mA to 100mA/120A or 2 to 240A
MR Clamp: 10 to 1000A AC, 10 to 1400A DC
SR Clamp: 3 to 1200A
AmpFlex®: 10 to 6500A
|Frequency (Hz)||40 to 70Hz|
|Other Measurements||kW, kVAR, PF, DPF, VA, Phase Rotation Temperature, RPM, Resistance, Continuity, and Diode Test|
|Harmonics||1st to 50th|
|Sampling Frequency||256 Samples/Cycle|
|Data Storage||Stores nine sets of readings for Volts, Amps, Power, and Harmonics|
|Power Source||Six NiMH AA rechargeable battery pack or six 1.5V AA Alkaline batteries
AC Supply: 120/230V AC (50/60Hz)
|Battery Life||≥8 hours with display on ≥40 hours with display off (recording mode)|
|Communication Port||Optically isolated USB|
|Display||Three-line backlit digital with custom icons|
|Dimensions||8.3 x 4.3 x 2.4 in (211 x 108 x 60 mm)|
|Weight||1.9 lbs (0.88kg)|
|Safety Rating||EN 61010, 600V Cat. III, IP 54, Pollution Degree 2|
Click on a category to view a selection of compatible accessories with the AEMC 8220 Single-Phase Power Quality Analyzer with Ampflex CT, 6500A.
