AccuEnergy AXM-MESH AcuMesh RS485 Network Module
Downloads:
manual



AccuEnergy AXM-MESH AcuMesh RS485 Network Module

Model: AXM-MESH

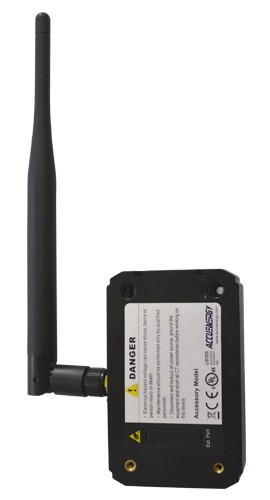

AcuMesh wireless metering solution connects Energy and Power Meters communicating with RS485 wirelessly. AcuMesh is a cost-effective solution that eliminates the need for installation of communication wires. This Native plug-in module for the Acuvim II series meters allows Acuvim II Power and Energy meters to be enabled with AcuMesh wireless communication capability, no power supply needed. Includes a Whip Antenna.

$215.00 USD



AccuEnergy AXM-MESH Offers

Features

  • All devices are connected automatically upon powering up without configuration, no software required
  • Compatible with devices running any protocols via RS485 port, e.g. Modbus-RTU
  • Highly secure communication with 128 bit Advanced Encryption Standard (AES)
  • Advance configuration available for complex network setup with free software
  • Communicate wirelessly between power and energy meters, and any devices with RS485 running any protocol within a building or campus
  • Field upgradable firmware
  • Long-range communication: 1000 ft (305m) indoor / 4 Miles (6.5km) outdoor in a single hop
  • "Mesh" network structure allows each transceiver to act as extension points for the network, allowing for a longer range of communication
  • Point to multi-point communication enabled with "mesh" structure
  • Automatic self-healing and optimizing communication pathway with reliable "mesh" network structure

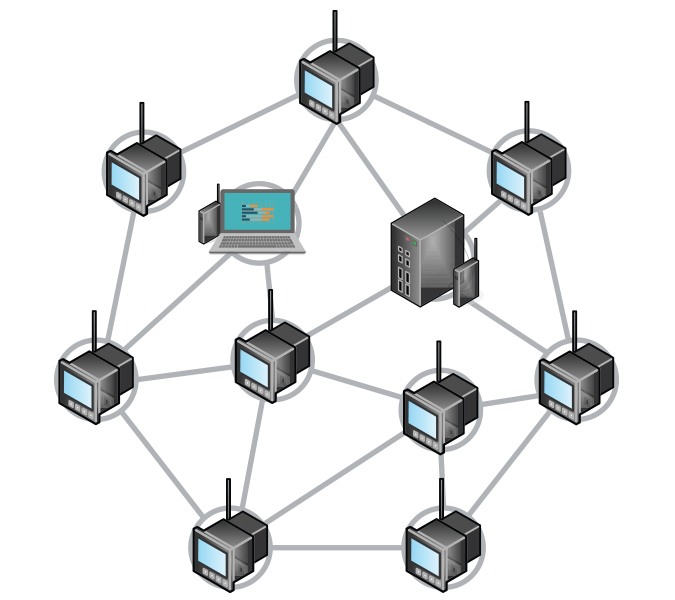

What is a Mesh Network?
The AcuMesh was designed to expand the communications capabilities of meters and MODBUS devices in these applications.

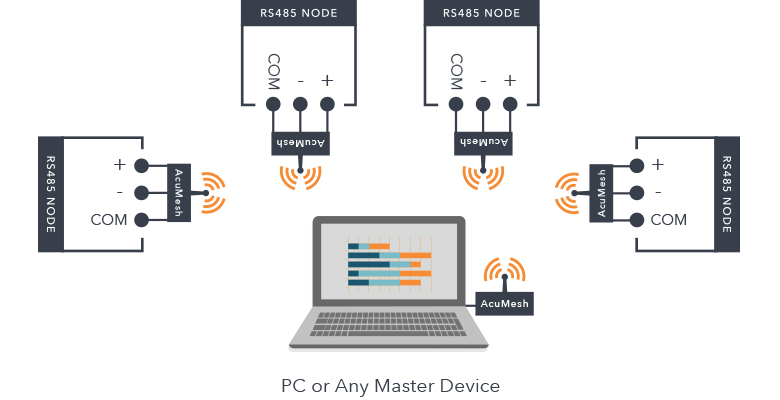

AcuMesh Mesh Network Configuration

With AcuMesh
The AcuMesh wireless RS485 network solution completely eliminates the need for RS485 communication wiring. Each device, or group of devices can directly connect to an AcuMesh transceiver, and the job is done. The AcuMesh transceiver transparently runs with any protocol and transmits data and commands wirelessly within a network. The AcuMesh communicates from salve to master, from sensors and meters to data acquisition servers and gateways cost effectively and with minimal challenge.


Compatibility
The AcuMesh transceiver works with any device with a RS485 communication port running any communication protocol. For example, the most common protocol is Modbus. AcuMesh transceiver works with Modbus master, Modbus slave and data acquisition gateway, making the entire network wirelessly connected and reliable. The same compatibility applies to any other protocol running on RS485 network.

All Accuenergy meters can directly connect with the Mesh transceiver. We also designed the transceiver into a modular form that can directly plug-in to an Acuvim II power and energy meter.


AcuMesh Mesh Network Configuration

Communication
The AcuMesh transceiver provides wirelessly transmits data from energy meters and devices with RS485 communication remotely. Allowing you to conveniently gather metering data from multiple locations in a building, or multiple buildings on a campus.

AcuMesh communication works out-of-box when connected to a meter or other MODBUS device. The automatic self-healing, self-optimizing network allows transceivers to find the optimal pathway for communication where other wireless methods such as Wifi and Zigbee failed to work.


Applications

  • Retrofit metering in existing buildings
  • Metering in campus
  • Metering in commercial buildings
  • Multi-tenant billing and submetering
  • Renewable energy-array, string and inverter metering
  • Industrial facilities metering
  • Data acquisition from entire infrastructure

AccuEnergy AXM-MESH Specifications

Connection Attached to Acuvim II Power Meter
Data Rate 9600 bps
Operating Frequency Band 902 to 928 MHz (900 Mhz ISM Band)
Spread Spectrum Frequency hopping
Number of Channels 64
Transmit Power Output 24 dBm (250 MW)
Receiver Sensitivity -101 dBm
Indoor/Urban Range Up to 1000' (305 m)
Outdoor RF Line-of-Sight Range Up to 4 miles (6.5 km) with 2.1 dB dipole antennas
RF Data Rate Up to 200 kb/s
Power Requirements Supplied from Acuvim II Power Meter

Accessories

Click on a category to view a selection of compatible accessories with the AccuEnergy AXM-MESH AcuMesh RS485 Network Module.

AccuEnergy ANTENNA-2DB-3M-S RS485 Network Magnetic Mount Antenna ANTENNA-2DB-3M-S 88225
Magnetic mount antenna with 3m extension cable and adhesive cup base. Connects to the AccuEnergy AcuMesh Transceiver (AcuMesh-K) or AcuMesh Module (AXM-Mesh).
$30.00 USD

Learn More

AccuEnergy ANTENNA-2DB-WHIP RS485 Network Whip Antenna ANTENNA-2DB-WHIP 88226
Whip Antenna that connects with AcuMesh Transceiver (AcuMesh-K) or AcuMesh Module (AXM-Mesh).
$30.00 USD

Learn More
