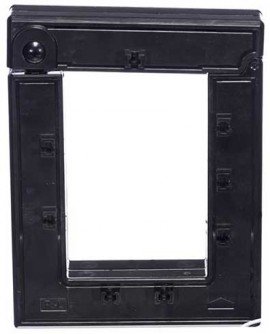

Model: AcuCT 4161R Series
High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5".
These high accuracy compact current transformers are ideal for quick and easy installation without the need of disconnecting cables. Multiple installation mechanisms provide stable and durable current measurement.
|Input Ranges||5A to 5000A|
|Typical Rated Input||1200A, 1600A, 2000A, 2500A, 3000A, 4000A, 5000A|
|Output Options||5A, 1A, 333mV, 80mA, 100mA, 200mA|
|Window Size||4.1 x 6.1" (105 x 155mm)|
|Exterior Dimensions||7.3 x 9.3 x 1.8" (185 x 235 x 45mm)|
|Accuracy||IEC 60044-1 0.5s class|
|Standard/Certifications||UL listed UL2808, 61010-1 and CSA 22.2|
|Form Factor||Rectangle Press-Open CTs|
