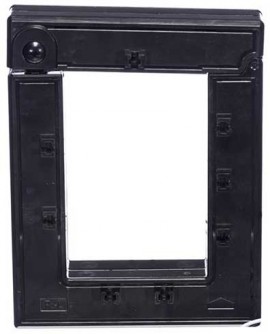

AccuEnergy AcuCT-4161R-2000:80mA Press Open Split Core Current Transformer, 2000A:80mA, 4.1 x 6.1"
Downloads:
datasheet



AccuEnergy AcuCT-4161R-2000:80mA Press Open Split Core Current Transformer, 2000A:80mA, 4.1 x 6.1"

Model: AcuCT-4161R-2000:80mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 4.1 x 6.1". Has a Current Input of 2000A and Output of 80mA.

$240.00 USD

2 to 3 Weeks


AccuEnergy AcuCT 4161R Series Offers

These high accuracy compact current transformers are ideal for quick and easy installation without the need of disconnecting cables. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • Simple hinged installation
  • Can be installed on cable, bus and panel
  • Listed to UL2808, 61010-1 and CSA 22.2
  • Revenue grade accuracy meets IEC61000-1 class 0.5
  • Push-open mechanism makes the installation quick and simple
  • Multiple voltage or current secondary output options
  • Multiple mounting options with included accessories

AccuEnergy AcuCT-4161R-2000:80mA Specifications

Input Range 5A to 2000A
Output Option 80mA
Window Size 4.1 x 6.1" (105 x 155mm)
Exterior Dimensions 7.3 x 9.3 x 1.8" (185 x 235 x 45mm)
Accuracy  IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Rectangle Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT-4161R-2000:80mA
