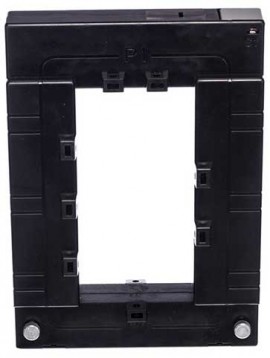

AccuEnergy AcuCT-3163-3000:5 Split Core Current Transformer, 3000:5A, 3.15 x 6.3"
Downloads:
datasheet



AccuEnergy AcuCT-3163-3000:5 Split Core Current Transformer, 3000:5A, 3.15 x 6.3"

Model: AcuCT-3163-3000:5

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 3.15 x 6.3". Has a Current Input of 3000A and Output of 5A.

$142.20 USD

2 to 3 Weeks


AccuEnergy AcuCT 3163 Series Offers

Ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • 0.5% accuracy from 10%-120% of rated current
  • Industrial standard 5A secondary output
  • UL recognized
  • Safe and easy installations
  • Multiple installation mechanisms
  • Includes mounting accessories

AccuEnergy AcuCT-3163-3000:5 Specifications

Input Ranges 5A to 3000A
Rated Output Options 5A
Window Size 3.15 x 6.3" (80 x 160mm)
Exterior Dimensions 6.93 x 9.72 x 2.76" (176 x 247 x 70mm)
Accuracy  0.5%
Standard/Certifications UR, CE, RoHS
Form Factor Rectangle Split Core
Click here for complete specifications on the Accuenergy AcuCT-3163-3000:5
