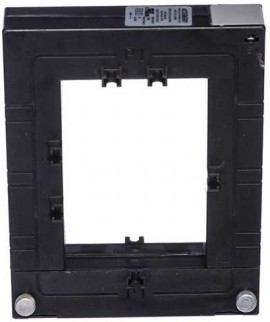

AccuEnergy AcuCT 3147 Series Split Core Current Transformers, 3.15 x 4.72"
Downloads:
datasheet



AccuEnergy AcuCT 3147 Series Split Core Current Transformers, 3.15 x 4.72"

Model: AcuCT 3147 Series

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 3.15 x 4.72".

Help with Ordering

Select a Model

AcuCT-3147-1000:1

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 3.15 x 4.72". Has a Current Input of 1000A and Output of 1A.

$98.05 USD

2 to 3 Weeks


AcuCT-3147-1000:5

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 3.15 x 4.72". Has a Current Input of 1000A and Output of 5A.

$98.05 USD

2 to 3 Weeks


AcuCT-3147-1200:1

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 3.15 x 4.72". Has a Current Input of 1200A and Output of 1A.

$98.05 USD

2 to 3 Weeks


AcuCT-3147-1200:5

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 3.15 x 4.72". Has a Current Input of 1200A and Output of 5A.

$98.05 USD

1 Week


AcuCT-3147-1600:1

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 3.15 x 4.72". Has a Current Input of 1600A and Output of 1A.

$98.05 USD

2 to 3 Weeks


AcuCT-3147-1600:5

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 3.15 x 4.72". Has a Current Input of 1600A and Output of 5A.

$98.05 USD

2 to 3 Weeks


AccuEnergy AcuCT 3147 Series Offers

Ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • 0.5% accuracy from 10%-120% of rated current
  • Industrial standard 5A secondary output
  • UL recognized
  • Safe and easy installations
  • Multiple installation mechanisms
  • Includes mounting accessories

AccuEnergy AcuCT 3147 Series Specifications

Input Ranges 5A to 1600A
Rated Output Options 5A or 1A
Window Size 3.15 x 4.72" (80 x 120mm)
Exterior Dimensions 5.67 x 7.28 x 1.97" (144 x 185 x 50mm)
Accuracy  0.5%
Standard/Certifications UR, CE, RoHS
Form Factor Rectangle Split Core
Click here for complete specifications on the Accuenergy AcuCT 3147 Series
