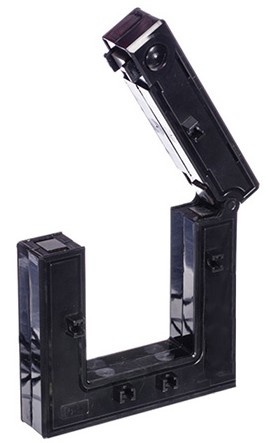

AccuEnergy AcuCT 3135R Series Press Open Split Core Current Transformers, 3.1 x 3.5"

Model: AcuCT 3135R Series

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 2 x 2".

Help with Ordering

Select a Model

AcuCT-3135R-1000:100mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1000A and Output of 100mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1000:1A

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1000A and Output of 1A.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1000:200mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1000A and Output of 200mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1000:333mV

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1000A and Output of 333mV.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1000:5A

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1000A and Output of 5A.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1000:80mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1000A and Output of 80mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1200:100mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1200A and Output of 100mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1200:1A

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1200A and Output of 1A.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1200:200mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1200A and Output of 200mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1200:333mV

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1200A and Output of 333mV.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1200:5A

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1200A and Output of 5A.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1200:80mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1200A and Output of 80mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1500:100mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1500A and Output of 100mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1500:1A

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1500A and Output of 1A.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1500:200mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1500A and Output of 200mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1500:333mV

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1500A and Output of 333mV.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1500:5A

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1500A and Output of 5A.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-1500:80mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1500A and Output of 80mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-600:100mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 600A and Output of 100mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-600:1A

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 600A and Output of 1A.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-600:200mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 600A and Output of 200mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-600:333mV

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 600A and Output of 333mV.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-600:5A

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 600A and Output of 5A.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-600:80mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 600A and Output of 80mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-800:100mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 800A and Output of 100mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-800:1A

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 800A and Output of 1A.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-800:200mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 800A and Output of 200mA.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-800:333mV

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 800A and Output of 333mV.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-800:5A

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 800A and Output of 5A.

$104.00 USD

2 to 3 Weeks


AcuCT-3135R-800:80mA

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 800A and Output of 80mA.

$104.00 USD

2 to 3 Weeks


AccuEnergy AcuCT 3135R Series Offers

These high accuracy compact current transformers are ideal for quick and easy installation without the need of disconnecting cables. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • Simple hinged installation
  • Can be installed on cable, bus and panel
  • Listed to UL2808, 61010-1 and CSA 22.2
  • Revenue grade accuracy meets IEC61000-1 class 0.5
  • Push-open mechanism makes the installation quick and simple
  • Multiple voltage or current secondary output options
  • Multiple mounting options with included accessories

AccuEnergy AcuCT 3135R Series Specifications

Input Ranges 5A to 1500A
Typical Rated Input 600A, 800A, 1000A, 1200A, 1500A
Output Options 5A, 1A, 333mV, 80mA, 100mA, 200mA
Window Size 3.1 x 3.5" (80 x 90mm)
Exterior Dimensions 5.7 x 6.1 x 1.25" (144 x 154 x 32mm)
Accuracy  IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Rectangle Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT 3135R Series
