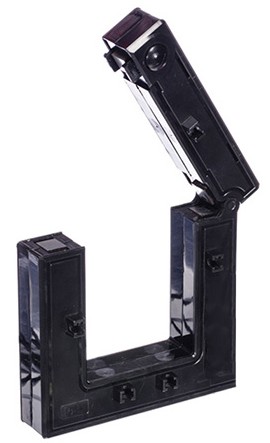

High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 3.1 x 3.5". Has a Current Input of 1200A and Output of 1A.
These high accuracy compact current transformers are ideal for quick and easy installation without the need of disconnecting cables. Multiple installation mechanisms provide stable and durable current measurement.
|Input Range||5A to 1200A|
|Window Size||3.1 x 3.5" (80 x 90mm)|
|Exterior Dimensions||5.7 x 6.1 x 1.25" (144 x 154 x 32mm)|
|Accuracy||IEC 60044-1 0.5s class|
|Standard/Certifications||UL listed UL2808, 61010-1 and CSA 22.2|
|Form Factor||Rectangle Press-Open CTs|
