AccuEnergy AcuCT 2031 Series Split Core Current Transformers, 1.97 x 3.15"
Downloads:
datasheet

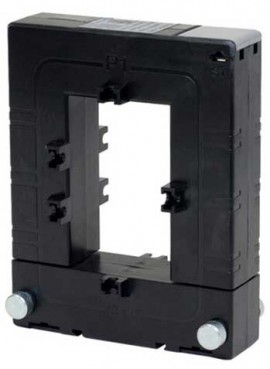

AccuEnergy AcuCT 2031 Series Split Core Current Transformers, 1.97 x 3.15"

Model: AcuCT 2031 Series

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 1.97 x 3.15".

Help with Ordering

Select a Model

AcuCT-2031-400:5

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 1.97 x 3.15". Has a Current Input of 400A and Output of 5A.

$83.80 USD

10+ in Stock


AcuCT-2031-400:1

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 1.97 x 3.15". Has a Current Input of 400A and Output of 1A.

$83.80 USD

4 to 5 Weeks


AcuCT-2031-600:5

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 1.97 x 3.15". Has a Current Input of 600A and Output of 5A.

$83.80 USD

1 in Stock


AcuCT-2031-600:1

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 1.97 x 3.15". Has a Current Input of 600A and Output of 1A.

$83.80 USD

2 to 3 Weeks


AcuCT-2031-800:5

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 1.97 x 3.15". Has a Current Input of 800A and Output of 5A.

$83.80 USD

2 in Stock


AcuCT-2031-800:1

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 1.97 x 3.15". Has a Current Input of 800A and Output of 1A.

$83.80 USD

2 to 3 Weeks


AcuCT-2031-1000:1

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 1.97 x 3.15". Has a Current Input of 1000A and Output of 1A.

$83.80 USD

2 to 3 Weeks


AcuCT-2031-1000:5

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 1.97 x 3.15". Has a Current Input of 1000A and Output of 5A.

$83.80 USD

1 Week


AccuEnergy AcuCT 2031 Series Offers

Ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • 0.5% accuracy from 10%-120% of rated current
  • Industrial standard 5A secondary output
  • UL recognized
  • Safe and easy installations
  • Multiple installation mechanisms
  • Includes mounting accessories

AccuEnergy AcuCT 2031 Series Specifications

Input Ranges 5A to 1000A
Rated Output Options 5A or 1A
Window Size 1.97 x 3.15" (50 x 80mm)
Exterior Dimensions 4.49 x 5.71 x 1.97" (114 x 145 x 50mm)
Accuracy  0.5%
Standard/Certifications UR, CE, RoHS
Form Factor Rectangle Split Core
Click here for complete specifications on the Accuenergy AcuCT 2031 Series
