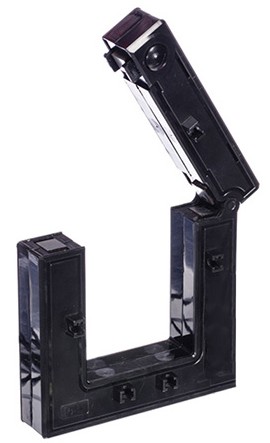

Model: AcuCT 200R Series
High accuracy premium split-core current transformer with a unique press-open hinge is simpler and faster to install. Features a window size of 1.25 x 1.25".
These high accuracy compact current transformers are ideal for quick and easy installation without the need of disconnecting cables. Multiple installation mechanisms provide stable and durable current measurement.
|Input Ranges||5A to 1000A|
|Typical Rated Input||400A, 600A, 800A, 1000A|
|Output Options||1A, 333mV, 80mA, 100mA, 200mA|
|Window Size||2 x 2" (51 x 51mm)|
|Exterior Dimensions||4.4 x 4.4 x 1.25" (111 x 111 x 32mm)|
|Accuracy||IEC 60044-1 0.5s class|
|Standard/Certifications||UL listed UL2808, 61010-1 and CSA 22.2|
|Form Factor||Square Press-Open CTs|
