AccuEnergy AcuCT-0812-400:1 Split Core Current Transformer, 400:1A, 0.83 x 1.22"
Downloads:
datasheet



AccuEnergy AcuCT-0812-400:1 Split Core Current Transformer, 400:1A, 0.83 x 1.22"

Model: AcuCT-0812-400:1

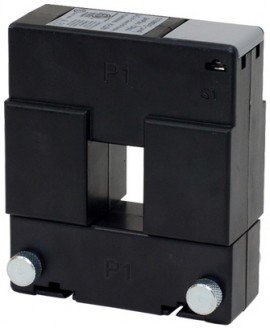

Light-weight and compact industrial standard split core 5A current transformers. Features a window size of 0.83 x 1.22". Has a Current Input of 400A and Output of 1A.

$53.60 USD

2 to 3 Weeks


AccuEnergy AcuCT 0812 Series Offers

Ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

Features

  • 0.5% accuracy from 10%-120% of rated current
  • Industrial standard 5A secondary output
  • UL recognized
  • Safe and easy installations
  • Multiple installation mechanisms
  • Includes mounting accessories

AccuEnergy AcuCT-0812-400:1 Specifications

Input Ranges 5A to 400A
Rated Output Options 1A
Window Size 0.83 x 1.22" (21 x 31mm)
Exterior Dimensions 3.5 x 4.13 x 1.57" (89 x 105 x 40mm)
Accuracy  1%
Standard/Certifications UR, CE, RoHS
Form Factor Rectangle Split Core
Click here for complete specifications on the Accuenergy AcuCT-0812-400:1
