AEMC 8230 Single Phase Power Quality Analyzer with MA193-10-BK CT (1000A)

AEMC 8230 Single Phase Power Quality Analyzer with MA193-10-BK CT (1000A)

Model: 8230 w/MA193-10-BK | Order No: 2130.88

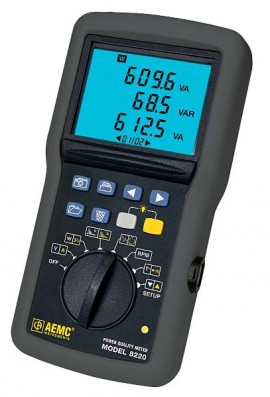

PowerPad Jr. Model 8230 with MA193-10-BK (1000A).

2 to 3 Weeks

$1,959.00 USD

Add In House NIST Traceable Calibration to your 8230

AEMC 8320 Offers

The AEMC 8320 PowerPad® Jr. is a single-phase power quality analyzer that is easy-to-use, compact and shock-resistant. It is intended for technicians and engineers to measure and carry out diagnostic work and power quality work on single or three-phase balanced load networks.


  • Measures up to 660Vrms or V DC
  • Measures up to 6500A AC or 1400A DC (probe dependent)
  • Displays Min, Max and Average Volts and Amps, Crest Factor, Peak value and K-Factor
  • Calculates and displays Watts, VARs and VA, Power Factor and Displacement Power Factor for single-phase and balanced three-phase
  • Displays total harmonic distortion (THD-F and THD-R) for voltage and current
  • Displays individual harmonic values and % for Volts and Amps through the 50th harmonic
  • Captures, displays and stores inrush current waveforms and statistics
  • Stores up to eight screen captures
  • Stores up to 1MB of trend recorded data
  • Configurable from DataView® software or front panel
  • Download stored data to DataView® software via optical with isolated USB port
  • Captures up to 4096 alarm events using up to 10 different thresholds
  • Displays and records up to 17 different power quality parameters


  • Energy metering (kVAh, VARh, kWh)
  • Motor start-up analysis
  • Verification of power distribution circuits
  • Measurement and recording of power system quality (kW, VA, VAR)
  • In-plant troubleshooting of power distribution panels and individual machinery
  • Determine harmonic problems originating from source or load

AEMC 8230 Specifications

Voltage (TRMS) Phase-to-Phase: 660V
Phase-to-Neutral: 600V
Current (TRMS) MN Clamp: 5mA to 100mA/120A or 2 to 240A
MR Clamp: 10 to 1000A AC, 10 to 1400A DC
SR Clamp: 3 to 1200A
AmpFlex: 10 to 6500A
Frequency (Hz) 40 to 70Hz
Other Measurements kW, kVAR, PF, DPF, kWh, kVARh, kVAh, K-Factor, Flicker, Harmonic Phase Shift, Phase Rotation
Harmonics THD-R, THD-F, V, A, VA 1st to 50th, Direction, Sequence
Sampling Frequency 256 Samples/cycle
Data Storage 1.5MB partitioned for waveforms, alarms, and trend recording
Power Source Six NiMH AA rechargeable battery pack
AC Supply: 120/230V AC (50/60Hz)
Battery Life ≥ 8 hours with display on ≥ 40 hours with display off (recording mode)
Communication Port Optically isolated USB
Display 1/4 VGA (320 x 240) color LCD
Dimensions 8.3 x 4.3 x 2.4 in (211 x 108 x 60 mm)
Weight 1.9 lbs (0.88kg)
Safety Rating EN 61010, 600V Cat. III, IP 54, Pollution Degree 2
Click here for complete specifications on the AEMC 8230 w/MA193-10-BK
