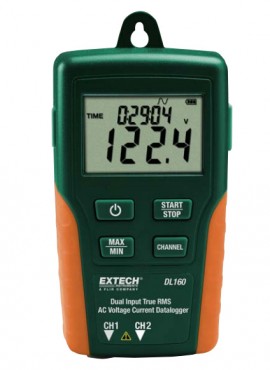

Extech DL160 True RMS Dual Input AC Voltage/Current Datalogger

Model: DL160

Datalog up to 256,000 readings with an user programmable sample rate.

$309.99 USD

1 to 2 Weeks

Add In House NIST Traceable Calibration to your DL160

Clear selected options


Extech DL160 - Dual Input True RMS AC Voltage/Current Datalogger

Dual Input True RMS AC Voltage/Current Datalogger

Datalog up to 256,000 readings

With user programmable sample rate from 1 second to 24 hours

Key Features:

  • Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current input
  • Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
  • LCD indicates time/date, current readings and Min/Max
  • Auto Power off and battery check
  • Complete with two Current sensor modules, two Voltage sensor modules, two sets of test leads, two sets of alligator clips, USB cable, Windows® compatible software, universal AC Adaptor, 4 AAA batteries and one memory button battery (CR2032)
  • Current Voltage Datalog up to 256,000 True RMS Current and Voltage readings. Captured readings can be downloaded to your PC, using the included USB cable and software, for further analysis. Readings can also be exported into a spreadsheet for creating charts and graphs.
DisplayMulti-function LCD
Maximum data points256000 values
Channelsdual channel TRMS AC voltage or Current
Sample rate1s to 24h selectable
Analysis software2000/XP/Vista
Data OutputUSB port
Current Clamp Jaw Opening12.7mm (0.5")
Open input indicatio"LO" appears on LCD
Low battery indicationEmpty battery symbol appears on the LCD
Power supply4 AAA Batteries and 1 CR 3V memory button battery (CR2032 or equivalent)
Battery life5 days (approximately)
AC Adaptor9V 0.5A
StandardsCE CAT III 600V for inside use maximum height 2000 meters
Operating Temperature0 to 50°C -32 to 122°F
Operating Humidity<70% RH
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Storage Humidity<80% relative humidity
Dimensions114 x 63 x 34mm (4.5 x 2.5 x 1.3)
Weight248g (8.7oz)
FunctionRangeAccuracy
Voltage (40Hz to 1kHz)10VAC to 600.0VAC±2.0%±1V
Current (50/60Hz)10A to 200.0A±2.0%±1A
Click here for complete specifications on the Extech DL160
