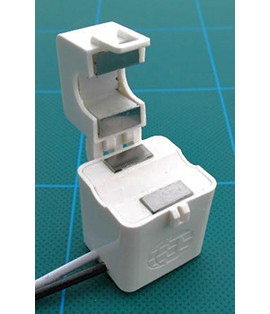

Dent CT-HSC-020-U Current Transformer

Dent CT-HSC-020-U Current Transformer

Model: CT-HSC-020-U

Mini-Hinged Split Core Current Transformer. 20A.

$22.50 USD

was $25.00

Availability: 6 in Stock
Add In House NIST Traceable Calibration to your CT-HSC-020-U

20A High Performance Mini Current Transformers

The hinged "Mini" CTs are small, low?cost current transformers with high accuracy (<0.5%) over a wide dynamic range with excellent phase shift. The "Minis" are ideal where space is limited such as whenmeteringmultiple loads within a panel board.Use for current measurement, energy metering, load surveys, demand metering, energy research, and submetering.

*Depending on meter compatibility. See ELITEpro™ and PowerScout™ speci?cations for details.
** For maximum performance, keep CT contact surfaces wiped clean and free of debris.

DENT Instruments CT-HSC-020-U Offers

Key Specifications
  Window Size 0.4” (10 mm)
  Current Range*0.25 ‐ 40A AC
  Output 333 mV @ 20 A AC 16.66 mV/A AC
  Rao Error** <0.5% from 0.25 to 40A AC (typical)
 Phase Error <1.5°  from 1  to 40A AC
<2°  From  0.25 to 1A AC
Output333 mV @ 20 A
Wire PolarityWhite = Hi, posive (+) Black = Low, negave (‐)
Phasing OrientaonArrow On Case Points  Toward Load
Frequency Range50 to 400 Hz
Case MaterialWhite Nylon, UL 94 V‐0
Leads2.4 M (8’), 600V, 20 gage
Working Temperature-15 to 60°C  (5 to 140°F)
Working Voltage600 VAC, Category III
Dielectric Strength3520 VAC  for 1 minute
CertificationDesigned to: UL STD 61010‐1 CAN/CSA STD C22.2 No. 61010‐1
Click here for complete specifications on the Dent CT-HSC-020-U
