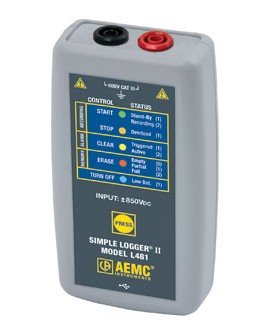

AEMC L481 Simple Logger II Datalogger, 1-Channel, 850V DC
Downloads:
datasheet manual



AEMC L481 Simple Logger II Datalogger, 1-Channel, 850V DC

Model: L481 | Order No: 2126.25

One channel datalogger for voltage measuring, monitoring and troubleshooting. Features bipolar voltage recording up to ±850V DC.

$379.00 USD

1 Week

Add In House NIST Traceable Calibration to your L481

Clear selected options


AEMC L281 Offers

The AEMC L481 Simple Logger® II is a single channel bipolar DC voltage recording device powered by alkaline batteries. It is capable of measuring voltages from -850 to + 850V DC. The choice of data storage modes and storage rates allow the operator to effortlessly configure the logger to optimize memory usage to the application at hand.

Extended Recording Mode (XRM®) and delayed start time are just two of the many application friendly features in this logger. Internal memory allows storing over 240,000 measurements, more than enough for most data collection needs.

User programmable scale and engineering units are available. Battery operation and compact size allows for installation in tight locations without the need for external power. A series of front panel LEDs provide a quick status of the logger’s state and memory usage.

DataView® application software is included, providing real-time viewing of measurement data, even while recording. Instrument configuration, data storage and report generation from a pre-defined template or operator custom designed templates are also standard features.

Features

  • Bipolar voltage recording up to ±850V DC
  • Programmable storage rates from 8 every second to 1 every day
  • 4 user selectable storage modes
  • Stores up to 240,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries
  • Lightweight, compact, fits anywhere
  • 5 LED indicators quickly and clearly display logger status
  • Includes FREE DataView® software for data storage, real-time display, analysis and report generation
  • Isolated USB 2.0 communication cable included
  • EN 61010-1; 300V CAT IV; 600V CAT III

Applications

  • Rail voltage monitoring
  • Long term supply monitoring
  • Find intermittent voltage problems
  • Machine monitoring
  • Windmill monitoring

AEMC L481 Specifications

Channels One
Input Connection Two recessed 4mm safety banana jacks
Measurement Range -850 to ±850V DC
Resolution 0.1V
Accuracy (50/60Hz) 0 to 5V: unspecified
5 to 50V: ± (0.5% of Reading + 1V)
50 to 850V: ± (0.5% of Reading + 0.5V)
Input Impedance 40MΩ
Sample Rate Maximum of 8 per second
Storage Rate Programmable from 8 every second to 1 every day
Storage Modes Start/Stop, FIFO, Extended Recording Mode (XRM™) and Alarm
Recording Length 15 minutes to 8 weeks, programmable using DataView®
Memory 240,000 measurements (512KB)
Data is stored in non-volatile memory and retained if the battery is low or removed
Communication USB 2.0 optically isolated
Power Source 2 x 1.5V AA-cell Alkaline batteries (included)
Battery Life 100 hours to >45 days
(dependent on sample rate and recording length)
Click here for complete specifications on the AEMC L481

What's included with the AEMC L481

  • L481 Simple Logger II Datalogger
  • USB cable
  • DataView® software
  • 2 x 1.5V AA alkaline batteries
  • Set of leads
  • Set of alligator clips
  • Manual
