Dent CT-RMV-24-2000-U Current Transformer

Model: CT-RMV-24-2000-U

24in RoCoil mV Flexible (Rogowski) Current Transformers. 40 to 10,000A.

$229.00 USD

1 to 2 Weeks


DENT RoCoil mV™ Flexible Current Transformers

Like its name implies, the RoCoil mV produces a millivolt output for use with power meters without a built-in amplifier/integrator circuitry. These CTs are available in standard lengths up to 72" and current ranges up to 6000A AC. The RoCoil mV requires 5-24V DC for operation, which can be supplied from a Line-Powered ELITEpro or optional external power supply.

Standard Features:

  • Available in 16", 24", 36", and 72" lengths
  • 1000A, 2000A, 3000A, and 6000A ranges
  • Max output of 1.66VAC for use with other manufacturer's meters

CT-RMV-24-2000-U Specifications

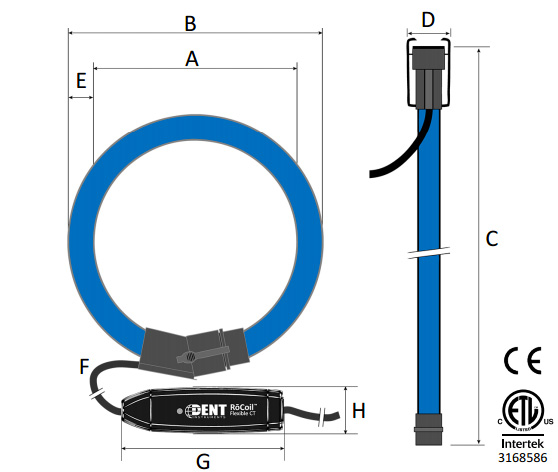

The Dimensions for RoCoil mV CTs
Dimensions RMV-16 RMV-24 RMV-36 RMV-72
A - Window Size 13 cm(5") 19 cm(7") 26 cm(10") 56 cm(22")
B - Transformer Coil O.D. 15 cm(6") 21 cm(8") 29 cm(11") 58 cm(23")
C - Transformer Length 40 cm(16") 60 cm(24") 90 cm(36") 180 cm(72")
D - Locking ConnectorO.D. 3.6 cm(1.4")
E - Transformer Coil Diameter 1.5 cm(0.6")
F - Wire Lead Total Length 2m(80")
G - Length of mV Module 9.5 cm (3.8")
H - Width of mV Module 3.2 cm (1.3")

Key Specifications

Four Lengths 40 cm (16"), 60 cm (24"), 90 cm (36"), 180 cm (72")
4 Window Sizes 13 cm (5"), 19 cm (7"), 26 cm (10"), 52 cm (20")
4 Current Ranges* 16", 1000A, 10-1300A AC
24", 2000A, 30-2600A AC
36", 3000A, 30-3900A AC
72", 6000A, 60-6000A AC
Output Signal 333 mV AC at rated current
Max output 1,665 mVAC
Accuracy < 1% typical at 2% to 500% of rated current

*Depending on meter compatibility. See ELITEpro™ and PowerScout™ specifications for details.

Electrical

All accuracies specified at 20°C (±2°C)with RoCoil mV™ centered on conductor.

Output Signal (16") 333 mV @ 1000A
(24") 333 mV @ 2000A
(36") 333 mV @ 3000A
(72") 333 mV @ 6000A
1665 mV @ 5000A
999 mV @ 6000A
666 mV @ 6000A
Max Output 1.66VAC
Power Requirement 5-24 VDC, 30 mA Maximum
Wire Color Red = Power (+)
Black = Power (-)
White = Signal (+)
Green = Signal (-)
Phasing Arrow Points Towards Load
Phase Shift < 1° at rated current
Frequency Range 45-600 Hz
Linearity ± 0.2%
Conductor Position Sensitivity ± 2% maximum
Influence of External Field ± 1.5% maximum
Temperature Sensitivity 0.07% per °C

Mechanical

Coil Materials Blue thermoplastic rubber, flame retardant UL 94 V-0 rated
Coupling Materials Polypropylene UL 94 V?0 rated
Case Material ABS UL 94 V-0 rated
Shielding 85% transducer, 100% output lead
Working Temp -20 °C to +60 °C (-4° to +140 °F)

Safety

Working Voltage 600 Vrms maximum
Dielectric Strength 7400 VAC around coil
600 VAC rated leads
Certifications Conforms to UL STD61010?1
Certi?ed to CAN/CSA STDC22.2
No. 61010
Click here for complete specifications on the Dent CT-RMV-24-2000-U
