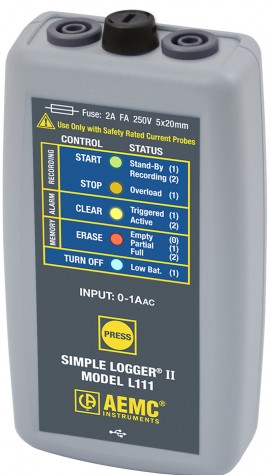

AEMC L111 Simple Logger II True RMS Datalogger, 1-Channel, 0-1A AC
Downloads:
datasheet manual



AEMC L111 Simple Logger II True RMS Datalogger, 1-Channel, 0-1A AC

Model: L111 | Order No: 2126.04

Compatible with standard AC current probes with current output and banana plug connection. Fused input.

$379.00 USD

1 Week

Add In House NIST Traceable Calibration to your L111

Clear selected options


AEMC L111 Offers

The AEMC L111 Simple Logger is a one channel recording device powered by an alkaline battery pack. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency (50 or 60Hz). Harmonic measurements are calculated from these 64 samples (Harmonics are only available from the Simple Logger® II Control Panel within DataView®).

Current can be measured and recorded with 0.1A resolution. Full scale measurement is probe dependent.  The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.

Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instrument’s internal memory to the computer for analysis.

Probes are not included and must be purchased separately.

Features

  • Fused input
  • Compatible with standard AC current probes with current output and banana plug connection
  • 64 samples per cycle
  • Programmable storage rates from 8 every second to 1 every day
  • 4 user selectable storage modes
  • Stores up to 240,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries
  • Lightweight, compact, fits anywhere
  • 5 LED indicators quickly and clearly display logger status
  • Includes FREE DataView® software for data storage, real-time display, analysis and report generation
  • Isolated USB 2.0 communication cable included
  • EN 61010-1; 50V CAT III

Applications

  • Load profiling
  • Fault current detection
  • Intermittent problem detection
  • Demand recording
  • Neutral current monitoring
  • Harmonic current recording using DataView® software
  • Metering CT resizing
  • Start-Stop time stamping

AEMC L111 Specifications

Channels One
Input Connection Two recessed banana jacks
Measurement Range 0 to 1A AC (probe dependent)
Resolution 0.1mA
Accuracy (50/60Hz) 0 to 10mA: unspecified
10 to 50mA: ±(0.5% of Reading + 1mA)
50 to 1000mA: ±(0.5% of Reading + 0.5mA)
Input Impedance 1Ω
Sample Rate 64 samples/cycle
Storage Rate Programmable from 8 every second to 1 every day
Storage Modes Start/Stop, FIFO, Extended Recording Mode (XRM™)* and Alarm
Recording Length 15 minutes to 8 weeks, programmable using DataView®
Memory 240,000 measurements (512KB)
Data is stored in non-volatile memory and retained if the battery is low or removed
Communication USB 2.0 optically isolated
Power Source 2 x 1.5V AA-cell Alkaline batteries (included)
Battery Life 100 hours to >45 days (dependent on sample rate and recording length)
Click here for complete specifications on the AEMC L111

What's included with the AEMC L111

  • L111 Simple Logger II True RMS Datalogger
  • USB cable
  • DataView software
  • 2 x 1.5V AA-cell batteries
  • Manual
