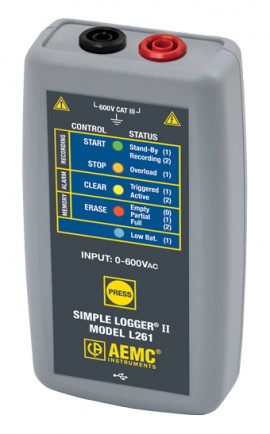

AEMC L261 Simple Logger II True RMS Datalogger, 1-Channel, 600V AC/DC
Downloads:
datasheet manual



AEMC L261 Simple Logger II True RMS Datalogger, 1-Channel, 600V AC/DC

Model: L261 | Order No: 2126.05

True RMS voltage recording up to 600VA C/DC. 64 samples per cycle.

$379.00 USD

1 in Stock

Add In House NIST Traceable Calibration to your L261

Clear selected options


AEMC L261 Offers

The AEMC L261 Simple Logger II is a one channel recording device powered by an alkaline battery pack. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency (50 or 60Hz). Harmonic measurements are calculated from these 64 samples (Harmonics are only available from the Simple Logger® II Control Panel within the DataView® software).

The Simple Logger® II records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the input(s) are ignored between measurement intervals.

The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.

Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instrument’s internal memory to the computer for analysis.

Features

  • TRMS voltage recording up to 600V AC/DC
  • 64 samples per cycle
  • Programmable storage rates from 8 every second to 1 every day
  • 4 user selectable storage modes
  • Stores up to 240,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries
  • Lightweight, compact, fits anywhere
  • 5 LED indicators quickly and clearly display logger status
  • Includes FREE DataView® software for data storage, real-time display, analysis and report generation
  • Isolated USB 2.0 communication cable included
  • EN 61010-1; 300V CAT IV; 600V CAT III

Applications

  • Surge and Sag recording
  • Long term supply monitoring
  • Industrial, commercial, residential monitoring
  • Monitor voltage harmonics
  • Find intermittent voltage problems
  • Machine monitoring

AEMC L261 Specifications

Channels One
Input Connection Two recessed 4mm safety banana jacks
Measurement Range 0 to 600V AC/DC
Resolution 0.1V
Accuracy (50/60Hz) 0 to 5V: unspecified
5 to 50V: ± (0.5% of Reading + 1V)
50 to 600V: ± (0.5% of Reading + 0.5V)
Input Impedance 40MΩ
Sample Rate 64 samples/cycle
Storage Rate Programmable from 8 every second to 1 every day
Storage Modes Start/Stop, FIFO, Extended Recording Mode (XRM™)* and Alarm
Recording Length 15 minutes to 8 weeks, programmable using DataView®
Memory 240,000 measurements (512KB)
Data is stored in non-volatile memory and retained if the battery is low or removed
Communication USB 2.0 optically isolated
Power Source 2 x 1.5V AA-cell Alkaline batteries (included)
Battery Life 100 hours to >45 days
(dependent on sample rate and recording length)
Click here for complete specifications on the AEMC L261

What's included with the AEMC L261

  • L261 Simple Logger II True RMS Datalogger
  • USB cable
  • DataView software
  • 2 x 1.5V AA-cell alkaline batteries
  • Set of leads
  • Set of alligator clips
  • Manual
