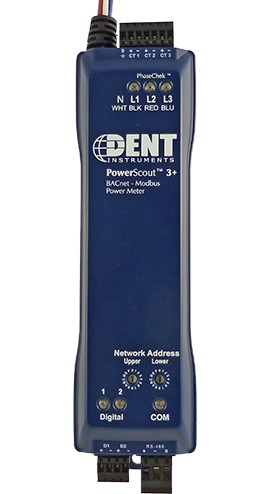

Dent Instruments PowerScout 3 Plus Networked Modbus Power Meter
The PowerScout 3 Plus networked power meter is a submeter designed to provide timely and accurate consumption data
necessary to gain the upper hand on electrical costs in today’s
escalating energy market. These meters can capture kWh/kW energy and
demand data as well as virtually all relevant energy parameters for
diagnostics and monitoring on three-phase or single-phase circuit
installations. The PowerScout’s flexibility, size, and ease-of-use make
them ideal tools for gathering detailed consumption information in
commercial, industrial, government and retail environments.
The new PowerScout 3 Plus includes BACNET protocol compatibility and was released December 2011 replacing the first generation PowerScout 3.
The PowerScout 3 Plus uses direct connections to each phase of the voltage and various pre-wired CT options such as split-core current transformers or flexible Rogowski coils (for large loads or large cables and busbars) to monitor current on each phase. All split-core CTs are internally shunted with ETL and CE mark for intrinsically safe operation on energized conductors. Special high-accuracy CTs are available for existing CT secondary monitoring. Also use on high voltage applications with PTs
The PowerScout 3 makes over 50 total electrical measurements which are derived from the voltage and current inputs. Electrical load diagnostic parameters such as power factor (both Apparent and Displacement) and line frequency are captured in addition to energy and demand values. A 4-wire 3-phase version is available for monitoring and Neutral phase on potentially unbalanced loads.
Communications interface to the PowerScout is through an RS-485 serial connection using the industry standard Modbus protocol. Up to 254 PowerScout meters may be connected to a single RTU or datalogger for monitoring and recording power usage at multiple locations within a single site.
The PowerScout 3 requires no external power and its power supply can accommodate service voltages ranging from 60-600V (phase to phase). The simple installation is accomplished by connecting the color-coded voltage leads and clearly labeled CTs. DENT’s patent pending PhaseChek™ circuitry includes a 3 LED indicator display that confirms proper CT to phase installation. The PowerScout automatically adjusts for CT orientation—greatly reducing set-up time and all but eliminating installation errors.
NOTE: PowerScout Meters require the purchase of factory-matched CTs. A wide range of CTs is available under the accessories tab or by adding this product to your shopping cart.
The new PowerScout 3 Plus includes BACNET protocol compatibility and was released December 2011 replacing the first generation PowerScout 3.
The PowerScout 3 Plus uses direct connections to each phase of the voltage and various pre-wired CT options such as split-core current transformers or flexible Rogowski coils (for large loads or large cables and busbars) to monitor current on each phase. All split-core CTs are internally shunted with ETL and CE mark for intrinsically safe operation on energized conductors. Special high-accuracy CTs are available for existing CT secondary monitoring. Also use on high voltage applications with PTs
The PowerScout 3 makes over 50 total electrical measurements which are derived from the voltage and current inputs. Electrical load diagnostic parameters such as power factor (both Apparent and Displacement) and line frequency are captured in addition to energy and demand values. A 4-wire 3-phase version is available for monitoring and Neutral phase on potentially unbalanced loads.
Communications interface to the PowerScout is through an RS-485 serial connection using the industry standard Modbus protocol. Up to 254 PowerScout meters may be connected to a single RTU or datalogger for monitoring and recording power usage at multiple locations within a single site.
The PowerScout 3 requires no external power and its power supply can accommodate service voltages ranging from 60-600V (phase to phase). The simple installation is accomplished by connecting the color-coded voltage leads and clearly labeled CTs. DENT’s patent pending PhaseChek™ circuitry includes a 3 LED indicator display that confirms proper CT to phase installation. The PowerScout automatically adjusts for CT orientation—greatly reducing set-up time and all but eliminating installation errors.
NOTE: PowerScout Meters require the purchase of factory-matched CTs. A wide range of CTs is available under the accessories tab or by adding this product to your shopping cart.
The Good:
The Bad:
The Bottom Line:
The Bad:
The Bottom Line:
Full Review
- Single or 3-phase energy and power meter for submetering applications
- 3 channel version single-circuit or branch-circuit monitoring
- Full range of Split-Core or Rogowski-style current transformers available
- PhaseChek™ LED indicators ensure correct CT orientation during installation (patent pending)
- Over 50 measured parameters for energy measurement, monitoring and diagnostics
- ETL and CE Mark (pending)
- Line-powered; 60-600V Phase-Phase Power Supply (Use on 120/240V, 208/120V, 480/277V, or 580/335V, 380/220 volt services; 50 or 60 Hz
- Data updates occur every 0.5 seconds
PowerScout 3 Plus Technical Specifications
| Technical Specifications | |
| Service Types | Single Phase, Three Phase-Four Wire (WYE), Three Phase-Three Wire (Delta) |
| Power | L1 to L2 Phase. 80-600VAC CAT III 50/60 Hz, 70 mA Max. Non user-replaceable .5 Amp internal fuse protection |
| 3 Voltage Channels | 60-600 Volts AC, High AC voltages can be measured with a Potential (voltage) Transformer |
| 3 Current Channels | 0-5, 000+ Amps depending on current transformer |
| Measurement Type | True RMS using high-speed digital signal processing (DSP) |
| Line Frequency | 50/60Hz or 400Hz |
| Waveform Sampling | 12 kHz voltage and current |
| Measurements | Volts, Amps, kW, kWh, kVAR, kVARh, kVA, kVAh Apparent Power Factor (aPF) Displacement Power Factor (dPF) All parameters for each phase and for system total |
| Accuracy | Better Than 1% (<0.5% typical) for V, A, kW, kVAR, kVA, PF excluding sensor |
| Resolution | Adjustible, 0.1 Amp, 0.1 Volt 1 watt, 1 VAR, 1 VA, 0.01 Power Factor typical (dPF) |
| Indicators | 3 LEDs for setup, 1 per phase: Green when voltage and current on the on the same phase, Red when incorrectly wired (PhaseChekTM), a 4th LED for Power On and communication indication |
| Communication Specifications | |
| Direct | Modbus or BACnet (MS/TP) over RS-485† |
| Modbus Framing | RTU (binary) |
| Communication Rate | 9600 baud (PS18), 19200†, 38400†, 57600†, 76800†, 115200† |
| Data Bits | 8 |
| Parity | None (PS18), Even†, Odd† |
| Stop Bit | 1 (PS18), 2†, 0† |
| Data Formats | PS3 Plus: Modbus or BACnet (MS/TP) PS18: Modbus only |
| Mechanical Specifications | |
| Operating Temperature | -7 to +60°C (-20 to +140°F) |
| Humidity | 5% to 95% non-condensing |
| Enclosure | PS3 Plus: PC/ABS UL 94 V0 PS18: PC UL 94 5V |
| Weight (exclusive of CTs) | PS3 Plus: 283 g (10 oz) PS18 Without Enclosure: 454 g (16 oz) PS18 With Enclosure: 1361 g (48 oz) |
| Dimensions* | PS3 Plus: 21.8 (L) x 5.8 (W) x 4.0 cm (H) (8.6” x 2.3” x 1.6”) PS18 Without Enclosure: 25.5 (L) x 16.5 (W) x 5.5 cm (H) (10.0” x 6.5” x 2.0”) PS18 With Enclosure: 27.79 (L) x 18.80 (W) x 13.00 cm (H) (10.94” x 7.40” x 5.12”) *Not including mounting brackets. |
