Model: 8230 | Order No: 2130.81
Single-phase power quality analyzer designed for electricians, facilities technicians and engineers to record power quality and carry out diagnostic work on electrical systems or devices. This model is stand-alone, CT's must be ordered separately.

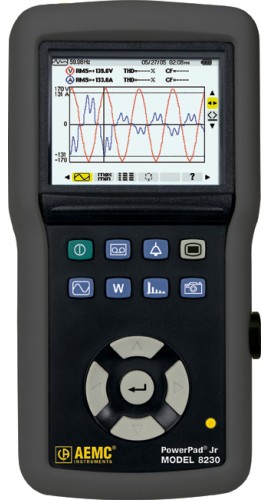

The AEMC 8320 PowerPad® Jr. is a single-phase power quality analyzer that is easy-to-use, compact and shock-resistant. It is intended for technicians and engineers to measure and carry out diagnostic work and power quality work on single or three-phase balanced load networks.
|Voltage (TRMS)||Phase-to-Phase: 660V
|Current (TRMS)||MN Clamp: 5mA to 100mA/120A or 2 to 240A
MR Clamp: 10 to 1000A AC, 10 to 1400A DC
SR Clamp: 3 to 1200A
AmpFlex: 10 to 6500A
|Frequency (Hz)||40 to 70Hz|
|Other Measurements||kW, kVAR, PF, DPF, kWh, kVARh, kVAh, K-Factor, Flicker, Harmonic Phase Shift, Phase Rotation|
|Harmonics||THD-R, THD-F, V, A, VA 1st to 50th, Direction, Sequence|
|Sampling Frequency||256 Samples/cycle|
|Data Storage||1.5MB partitioned for waveforms, alarms, and trend recording|
|Power Source||Six NiMH AA rechargeable battery pack
AC Supply: 120/230V AC (50/60Hz)
|Battery Life||≥ 8 hours with display on ≥ 40 hours with display off (recording mode)|
|Communication Port||Optically isolated USB|
|Display||1/4 VGA (320 x 240) color LCD|
|Dimensions||8.3 x 4.3 x 2.4 in (211 x 108 x 60 mm)|
|Weight||1.9 lbs (0.88kg)|
|Safety Rating||EN 61010, 600V Cat. III, IP 54, Pollution Degree 2|
Click on a category to view a selection of compatible accessories with the AEMC 8230 PowerPad Jr True RMS Power Quality Analyzer, Single Phase, 40 to 70Hz.
