Fluke 434-II/BASIC Power Quality Analyzer
Downloads:
datasheet manual

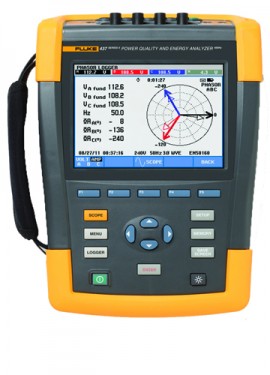

Fluke 434-II/BASIC Power Quality Analyzer

Model: 434-II/BASIC

Power quality analyzer kit without CTs (Order CTs separately).

$5,699.99 USD

1 to 2 Weeks

Add In House NIST Traceable Calibration to your 434-II/BASIC

Clear selected options



Fluke 434-II Offers

The Fluke 434 Series II Power Quality and Energy Analyzer is the world's only Power Quality analyzer that can monetize the cost of energy waste due to poor power quality and is ideal for characterizing power quality, conducting load studies and capturing hard-to-find voltage events over a user-defined period of time. The Fluke 434 II Energy Analyzer is the ideal tool for advanced energy logging and energy monetization, identifying the most energy-wasteful areas of your facility.

Features

  • These power quality and energy analyzers help locate and predict, prevent and troubleshoot power quality problems in three-phase and single-phase power distribution systems
  • Energy Loss Calculator: classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars
  • Power Inverter Efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
  • Troubleshoot Real-time: Analyze trends using cursors and zoom tools
  • Measure all Three Phases and Neutral: With included flexible current probes (4) with enhanced thin flex designed to fit into the tightest places
  • Automatic Trending: Every measurement is always automatically recorded, without any set-up
  • System Monitor: Ten power quality parameters on one screen according to EN61060 power quality standard
  • Logger Function: Configure for any test condition with memory for up to 600 parameters at user defined intervals
  • View Graphs and Generate Reports: With included analysis software
  • Battery Life: Seven hours of operating time per charge on Li-ion battery pack
  • Automatic Transient Mode: Capture 200kHz waveform data on all phases simultaneously up to 6kV
  • Fully Class A Compliant: Conduct tests according to stringent international IEC 61000-4-30 Class A standard
  • Mains Signalling: Measure interference from ripple control signals at specific frequencies

Specifications

Model Measurement range Resolution Accuracy
Vrms (AC/DC) 434-II 1 V to 1000 V phase to neutral 0.1 V ± 0.5% of nominal voltage****
Vpk 1 Vpk to 1400 Vpk 1 V 5% of nominal voltage
Voltage Crest Factor (CF) 1.0 > 2.8 0.01 ± 5 %
Vrms½ 434-II 1 V to 1000 V phase to neutral 0.1 V ± 1% of nominal voltage
Vfund 434-II 1 V to 1000 V phase to neutral 0.1 V ± 0.5% of nominal voltage
Amps (AC/DC) i430-Flex 1x 5 A to 6000 A 1 A ± 0.5% ± 5 counts
i430-Flex 10x 0.5 A to 600 A 0.1 A ± 0.5% ± 5 counts
1mV/A 1x 5 A to 2000 A 1A ± 0.5% ± 5 counts
1mV/A 10x 0.5 A A to 200 A (AC only) 0.1 A ± 0.5% ± 5 counts
Apk i430-Flex 8400 Apk 1 Arms ± 5 %
1mV/A 5500 Apk 1 Arms ± 5 %
A Crest Factor (CF) 1 to 10 0.01 ± 5 %
Amps½ i430-Flex 1x 5 A to 6000 A 1 A ± 1% ± 10 counts
i430-Flex 10x 0.5 A to 600 A 0.1 A ± 1% ± 10 counts
1mV/A 1x 5 A to 2000 A 1A ± 1% ± 10 counts
1mV/A 10x 0.5 A A to 200 A (AC only) 0.1 A ± 1% ± 10 counts
Afund i430-Flex 1x 5 A to 6000 A 1 A ± 0.5% ± 5 counts
i430-Flex 10x 0.5 A to 600 A 0.1 A ± 0.5% ± 5 counts
1mV/A 1x 5 A to 2000 A 1A ± 0.5% ± 5 counts
1mV/A 10x 0.5 A A to 200 A (AC only) 0.1 A ± 0.5% ± 5 counts
Hz Fluke 434 @ 50 Hz nominal

42.50 Hz to 57.50 Hz

0.01 Hz ± 0.01 Hz
Fluke 434 @ 60 Hz nominal 51.00 Hz to 69.00 Hz 0.01 Hz ± 0.01 Hz
Watts (VA, var) i430-Flex max 6000 MW 0.1 W to 1 MW ± 1% ± 10 counts
1 mV/A max 2000 MW 0.1 W to 1 MW ± 1% ± 10 counts
Power factor (Cos j/DPF) 0 to 1 0.001 ± 0.1% @ nominal load conditions
kWh (kVAh, kvarh) i430-Flex 10x Depends on clamp scaling and V nominal ± 1% ± 10 counts
Energy loss i430-Flex 10x Depends on clamp scaling and V nominal ± 1% ± 10 counts Excluding line resistance accuracy
Harmonic Order (n) DC, 1 to 50 Grouping: Harmonic groups according to IEC 61000-4-7
Inter-Harmonic Order (n) OFF, 1 to 50 Grouping: Harmonic and Interharmonic subgroups according to IEC 61000-4-7
Volts %f 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.1 %
%r 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.4 %
Absolute 0.0 to 1000 V 0.1 V ± 5% *
THD 0.0 % to 100 % 0.1 % ± 2.5 %
Amps %f 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.1%
%r 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.4 %
Absolute 0.0 to 600 A 0.1 A ± 5% ± 5 counts
THD 0.0 % to 100 % 0.1 % ± 2.5 %
Watts %f or %r 0.0 % to 100 % 0.1 % ± n x 2%
Absolute Depends on clamp scaling and V nominal - ± 5% ± n x 2 % ± 10 counts
THD 0.0 % to 100 % 0.1 % ± 5 %
Phase Angle -360° to +0° ± n x 1°
Plt, Pst, Pst(1min) Pinst 0.00 to 20.00 0.01 ± 5 %
Volts % 0.0 % to 20.0 % 0.1 % ± 0.1 %
Amps % 0.0 % to 20.0 % 0.1% ± 1 %
Threshold levels Threshold, limits and signalling duration is programable for two signalling frequencies
Signalling frequency 60 Hz to 3000 Hz 0.1 Hz
Relative V% 0 % to 100 % 0.10 % ± 0.4 %
Absolute V3s (3 second avg.) 0.0 V to 1000 V 0.1 V ± 5 % of nominal voltage
Click here for complete specifications on the Fluke 434-II/BASIC
