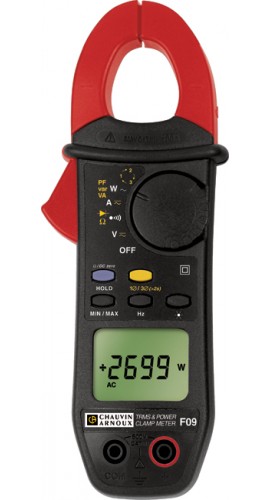

AEMC F09 Clamp-on Meter

Model: F09 | Order No: 2129.50

True RMS, 400A AC/DC, 600V AC/DC, Power (kW), Ohms, Continuity, Phase Rotation.

Sorry! This product has been discontinued.


The AEMC F09 Clamp-on Meter has been discontinued, it has been replaced by the AEMC 403 True RMS Clamp Meter with Temperature, 1000V AC/DC, 1000A AC/1500A DC

The AEMC F09 Clamp-on Meter is a high performance clamp-on meter built into a rugged compact sized case, with exceptional ergonomic design and extraordinary measurement possibilities. Integrating a fast microprocessor sampling at a high rate, this meter is completely automatic and performs TRMS measurements on the most distorted waveforms.

The AEMC F09 Clamp-on Meter automatically detects AC or DC in Voltage and Current. It has a V-LiveĀ™ function to warn of the use of live circuits or elevated voltages. This meter can measure inrush currents from 1 cycle up to 10 cycles and frequency. It also measures Phase Rotation (using only two leads!), Power Factor and Power. Other features include: auto-ranging, 4000-count display and Auto-Off.

Applications

  • Electrical maintenance
  • Electrical power distribution
  • Safety lighting system maintenance
  • Automotive test troubleshooting
  • Industrial maintenance
  • HVAC

Specifications

Electrical
AC Current (Auto-Ranging) 0.2 to 400Arms
AC Voltage (Auto-Ranging) 0.2 to 600Vrms
DC Current (Auto-Ranging) 0.2 to 400Arms
DC Voltage (Auto-Ranging) 0.2 to 600Vrms
AC + DC Current (Auto-Ranging) 0.2 to 400Arms
AC + DC Voltage (Auto-Ranging) 600Vrms
Resistance 40 kOhms
Diode Test Yes
Continuity (Beeper) Yes (w/adjustable threshold)
Frequency 20kHz
Power 5W to 240kW (kW, kVA, kVAR)
Power Factor -1.00 to 1.00
Phase Rotation Yes
Min/Max/Peak Yes
Hold Yes
Inrush Current 0.5 to 10 cycles selectable
V-Live Hazardous Voltage Indicators 45Vp
Auto-Off Yes
Power Source 9V Alkaline battery
Battery Indicator Yes
Buzzer for Overrange Yes
General Specifications
Safety Rating EN 61010-1, EN 61010-2-032, 600V Cat. III
Double Insulation Yes
CE Mark Yes
Dimensions 2.76 x 7.6 x 1.46 inches (70 x 193 x 37mm)
Weight 9.17 oz (260g)
Click here for complete specifications on the AEMC F09

Key Features:

  • Hand-held size, ultra practical and ergonomic design
  • TRMS measurement through fast sampling - accurate on non-linear waveforms
  • AC or DC and AC+DC measurement in V and A
  • 4kHz Bandwidth
  • 3.5 Crest Factor at 600Arms and 900Vrms
  • Peak function captures 500µs signals
  • Measure Inrush Current on 0.5, 1, 2.5, 5 and 10 cycles (15 to 70Hz)
  • Min/Max automatic capture of extreme values at 100ms samples
  • Measure V, A, Ohms, kW, Hz, Phase Rotation, AC + DC
  • Continuity at programmable buzzer threshold from 1 to 40Ω
  • Selectable V-Live™ function (buzzer) warns of live circuit
  • Automatic DC current zeroing
  • Backlit LCD
  • Battery life displayed directly in hours at the push of a button
  • EN 61010-1, EN 61010-2-032, 600V Cat. III
  • Includes soft carrying case and test leads
