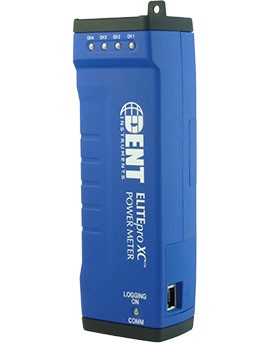

Dent ElitePro EXC-I-B-F Power Meter

Model: EXC-I-B-F

Dent ElitePro XC - International Version - USB/Ethernet communications plus internal bluetooth adapter. internal antenna. Range approx. 10 - 100' - fused crocodile clips.

$1,749.00 USD

2 to 3 Weeks

Receive up to $160 in Free Products

Order a Dent ElitePro XC Series Power Meter from PowerMeterStore.com and select from a choice of free products, exclusively from us!

Clear selected options

Select $160.00 in Free Tools Above



A dependable and versatile tool for measuring energy usage

The ELITEpro XC is a complete solution for pinpointing electric usage and quantifying energy usage. It is capable of measuring, storing, and analyzing electrical consumption data which is derived from the voltage and current inputs. The ELITEpro XC uses direct connections to each phase of the voltage and various interchangeable CT options such as split-core current transformers or flexible RoCoils™ (for large loads or large cables and bussbars) to monitor current on each phase.

These meters can capture kWh/kW energy and demand data as well as virtually all relevant energy parameters for diagnostics and monitoring on three-phase or single-phase circuit installations. Electrical load diagnostic parameters, such as displacement power factor, are captured in addition to energy and demand values.

The ELITEpro XC's flexibility, size, and ease-of-use make it the ideal tool for gathering detailed consumption information in commercial, industrial, government and retail environments.


Four Analog Input Channels: Correlate your consumption with environmental conditions.

New to the ELITEpro XC are 4 analog input channels which can be configured for voltage or current input used in any combination among channels. Analog inputs are especially helpful when used in conjunction with power measurements to correlate the consumption of electricity with environmental, HVAC plant performance, or other process conditions. Typical uses might include logging ambient temperature, building temperatures, solar insolation, tank pressures, duct flows, etc. Obtain this valuable data using just one meter: the ELITEpro XC.


Key Features

  • For single or 3-phase systems using 80-600V phase-to-phase (AC or DC) services when line powered or 0-600V (AC or DC) when externally powered. Measures up to four channels of energy metrics with currents ranging from 0-6,000 amps.
  • Analog Inputs record analog data with configurable input ranges for voltage (0-15 VDC) or current loop (0 or 4-20 mA) transducers. Analog inputs are used for process or environmental correlation studies with power.
  • Line-powered - no need for batteries or external power source.
  • User-selectable recording intervals as short as every 1 second
  • 16 MB non-volatile memory standard for months of recording time.
  • Better than 1% accuracy (<0.2% typical).
  • Fast USB connection and standard Ethernet port.
  • ELITEpro XC may be configured with optional Bluetooth® wireless technology.
  • Optional Wi-Fi interface allows for remote data collection over wireless networks. Check real-time values using a Wi-Fi-enabled laptop, tablet, or smartphone via a web browser.
  • Simple yet powerful Windows-based ELOG™ software package for setup, data retrieval, and analysis. Easy data exporting to almost any analysis program.
  • Easy to setup and installs in minutes. Patented PhaseChek™ LED indicators ensure correct CT orientation at installation.
  • Rugged and compact-easily fits inside breaker panels and switch gear.

Hardware Features

PhaseChek™

PhaseChek lights verify that that the CTs are correctly installed - green is good, red means that either a CT is incorrectly installed or that a CT is in the wrong orientation.

Mount Inside or Beside

Mount the ELITEpro XC inside the panel using the mounting magnets or beside the panel using the mounting tab

Log with Confidence

Indicator lights show that the meter is recording

Standard Ethernet Port

The Ethernet and USB ports are standard equipment, no additional costs


Connections


Voltage

Connections via fused or unfused crocodile clips or shark clips

Current

Use up to four channels of current via CTs connected to a terminal block

Power

Power is supplied via the voltage connections - no auxillary supply is required


Communications Options


Ethernet & USB

The Ethernet and USB ports are standard equipment

WiFi

Use optional WiFi to setup, record and view data remotely

WiFi with Antenna

Optional WiFi with external antenna provides 3dbi gain

Bluetooth

Optional Bluetooth provides short-range wireless configuration

Connect with USB (Standard Equipment)

Connect directly to the ELITEpro XC via the included A-to-B USB cable.


Connect with Ethernet (standard equipment)

Connect remotely to the logger via 10/100MB Ethernet using DHCP or static IP to manually or automatically download data or reconfigure


Connect with Wi-Fi (optional)

The optional Wi-Fi interface allows the meter to be connected to a Wi-Fi network and accessed from any PC on the network using ELOG software. Alternatively, configure the ELITEpro XC as its own Wi-Fi hotspot and view real-time data using a Wi-Fi enabled PC, tablet, or smart phone via a web browser from up to 300 ft. away. Two antenna options are available: internal antenna (75-300 ft.) or external 3 dbi antenna (150-300 ft). Use ELOG to switch between WiFi and QuickView™ access point mode


Connect with BlueTooth® (optional)

Save time and meet safety requirements by communicating with an ELITEpro XC without removing the electrical panel door. In addition to the standard USB and Ethernet ports, ELITEpro XC instruments may be equipped with an optional Bluetooth® wireless technology interface, which will allow a PC with a Bluetooth® wireless technology adapter running ELOG to connect to the ELITEpro XC over short distances (10-100 feet typical) to send setup tables or download data. PC must support Serial Port Profile (SPP)


Current Transformers

An Industry-Leading Selection of Quality Transformers

Choose from an interchangeable selection of CT options including split-core, clamp-on, hinged and flexible RoCoil™ types. The ELITEpro XC comes with an embedded Rogowski coil CT amplifier/integrator circuit so there is no need to provide external power when using our line of flexible RoCoil™ CTs.

All DENT CTs are internally shunted for intrinsically safe operation on energized conductors. Special high-accuracy CTs are available for existing CT secondary monitoring. The ELITEpro XC can monitor up to four single-phase loads, two three-phase (3-wire) Delta loads or one three-phase (4-wire) WYE load.


Software

Setup, download & analyze

ELOG software is used to program the meter, display metered values, and retrieve and analyze the collected data.

ELOG graphically displays recorded data, performs analysis, and facilitates automatic remote data collection. Data is also easily exported to popular spreadsheet and database programs for additional analysis.

You are provided with an unlimited site license to the software with purchase.


Outdoor Applications

Weatherproof Enclosure

Our optional NEMA 4 rated weathertight drop-in enclosure delivers stronger environmental integrity, separate voltage plugs, watertight connectors for both the current leads and the power and communication cables.

This option for the ELITEpro XC will meet the stringent requirements of remote data logging.


Additional Features

Line Powered with Reduced Impact on Environment:

The ELITEpro XC is powered directly from the phases of the service being measured. It incorporates a broadband power supply which operates on virtually any 80-600V phase-tophase service. You will not have to worry about constantly changing or recharging batteries, nor finding an external power source at the job site. And you will avoid the negative environmental impact of disposing of batteries containing rare earth materials that are difficult to recycle or reclaim.


Memory for Extended Recording

Measurements are stored in on-board memory at recording intervals selected by the user, which can be as short as one second or as long as once every 24 hours. The ELITEpro XC has 16MB of internal non-volatile memory, which allows for long-term logging sessions. For example, the ELITEpro XC can record a WYE setup with all available system measurements using a 2 minute integration interval for over 160 days!


Bi-Directional Metering for Renewable Studies

The ELITEpro XC design delivers bi-directional metering, which is capable of monitoring power generated by a renewable energy source versus power imported from the grid-ideal for solar power measurements.


Fast Sampling Rate Captures Power Quality Data

Regardless of the user-selectable recording interval, the ELITEpro XC has a waveform sampling frequency of 12 kHz. This is the number of data points the logger samples on each AC waveform (200 points per cycle at 60 Hz; 240 points per cycle at 50 Hz). This fast sampling rate allows for real-time display of voltage, current waveforms, and harmonics. The channel sampling rate is 8 Hz or every 125 mSec.


Field-Proven: Rugged & Compact

Measuring in at only 21.6 x 6.3 x 4.7 cm (8.5" x 2.5" x 1.9") and weighing 340 grams (12 ounces), the ELITEpro XC was designed to fit inside panels for safety and convenience. Its rugged plastic housing is even supplied with magnets on the housing to facilitate mounting.

Our optional NEMA 4 rated weathertight drop-in enclosure delivers stronger environmental integrity, separate voltage plugs, water-tight connectors for both the current leads and the power and communication cables. This option for the ELITEpro XC will meet the stringent requirements of remote data logging.


What Happens to the ELITEpro XC During a Power Outage?

One question that we're frequently asked is this: "What happens to my ELITEpro XC during a power outage?"

The ELITEpro XC has 16 MB of non-volatile memory. It's a line-powered device, which means that it's powered by the L1 to L2 voltage under measurement.

During a power outage, the meter ceases to be energized because it's powered by the voltage in the panel under measurement. Although the logger stops recording, the built-in memory means the logger maintains all its records and settings. Once power is restored, the meter will continue to record.

There is a feature in ELOG software to help with this scenario called "Fill Missing Records." This feature detects gaps in the time sequence of the data and fills the missing records with 0 values. This feature is useful any time there are gaps in the time stamp records.

ELITEpro XC During Power Outage

Applications

  • Measurement and Verification (M&V) Studies
  • Electrical Load Profiling
  • Energy Audits
  • New Technology Assessment Studies

Specifications

Technical
Service Type Single Phase (two wire or three wire), Three Phase-Four Wire (WYE), Three Phase-Three Wire (Delta), DC Systems (Solar/Battery)
Voltage Channels 3 channels, CAT III, 0-600 VAC (line-to-line) or 600 VDC
Current Channels 4 channels, .67 VAC max, +/- 1 VDC. Ideal for 333 mV full scale CTs
Maximum Current Input External transducer dependent. 200% of current transducer rating (mV CTs) Measure up to 6000A with RoCoil CTs.
Measurement Type True RMS using high-speed digital signal processing (DSP)
Line Frequency DC/50/60/400 Hz*
Waveform Sampling 12 kHz
Channel Sampling Rate .125 seconds
Integration Period 1, 3, 15, 30 seconds; 1, 2, 5, 10, 15, 20, and 30 minutes; 1 and 12 hours, 1 day
Energy Measurements Volts, Amps, Amp-Hrs (Ah), kW, kWh, kVAR, kVARh, kVA, kVAh, Displacement Power Factor (dPF). All parameters for each phase and for system total.
Analog Measurements 0-10 Volts, 0 or 4-20 mA current loop. Non-isolated, external power for current loop. User scaling for sensor reporting in physical units.
Accuracy Better than 1% (<0.2% typical) for V, A, kW, kVAR, kVA, PF, Analog
Resolution 0.01 Amp, 0.1 Volt, 1 Watt, 1 VAR, 1 VA, 0.01 PF, 0.01 ANA
LED Indicators Tri-color (red, green, blue): 1 LED indicates communication (blue for wireless, Bluetooth® or Ethernet), 4 LEDs for correct phasing (PhaseChek™).
Power
Line-Power From L1 Phase to L2 Phase. 80-600V (AC or DC) CAT III DC/50/60/400 Hz, 125 mA, 5 W, or 10 VA max. Non-user replaceable .5 Amp internal fuse protection.
Power In 6-10 VDC, 500 mA
Power Out 6 VDC, 200 mA max
Communications
USB (Standard) USB standard (Type B). 1.8 M (6 ft) A-to-B USB Cable (included)
Ethernet (Standard) Standard RJ-45 Connector supports 10/100 MB Ethernet over Cat 5 or better. Configure for DHCP or Static IP.
Bluetooth Wireless Technology (Optional) Internal antenna with 10-100 ft range (typical). Requires Bluetooth® wireless technology adapter on Windows PC. Adapter must support the Serial Port Profile (SPP).
Wi-Fi Adapter† (optional) Wi-Fi option available as two separate configurations:
  • Internal antenna: typical range 75-300 ft.
  • External 3 dbi antenna: typical range 150-300 ft.
Mechanical
Operating Temperature -7 to + 60 °C (20 to 140 °F)
Operating Humidity 5% to 95% non-condensing
Enclosure Type ABS plastic, 94-V0 flammability rating
Weight 340 g (12 ounces)
Dimensions 21.6 x 6.3 x 4.7 cm (8.5" x 2.5" x 1.9")

* Performance varies at 400 Hz operation. Contact the factory for details.
† ELITEpro XC loggers that are equipped with a Wi-Fi package contain an internal antenna. An external antenna is optional. You may toggle between using the internal and external antenna (if it is available on your logger) by checking or unchecking the Use External Antenna checkbox in ELOG.
US/NORTH AMERICAN ELITEpro XC configuration includes 4 color (black, blue, red, white) voltage leads and croc clips. INTERNATIONAL ELITEpro XC configuration includes 3 black voltage lead connections, 1 white connection (neutral) and 5 color (black, blue, red, white, yellow) voltage leads and croc clips.

Click here for complete specifications on the Dent EXC-I-B-F

Connect to a remote ELITEpro XC using Port Forwarding

What happens if your ELITEpro XC is on a local area network at a remote project site, but you're hundreds of miles away, at your office, and need to download data off the meter? Port Forwarding makes it possible to complete the download and, with a little planning, you probably already have everything you need to successfully download your data.

Port forwarding is a name given to the combined technique of:

  1. Translating the address and/or port number of a packet to a new destination
  2. Possibly accepting such packets in a packet filter (firewall)
  3. Forwarding the packet according to the routing table

Port forwarding allows remote computers (for example, computers on the Internet) to connect to a specific computer or service within a private local area network (LAN). In the case of the ELITEpro XC (or ELITEpro SP) with Ethernet, port forwarding allows remote connection between the ELITEpro XC and a computer on another network through the firewall via ELOG software.

For instance, if the ELITEpro XC is on the local area network at a remote project site, but you wish to download data off the meter from the office, you can remotely access the ELITEpro XC from any computer with an Internet connection through ELOG.

Requirements

Prior to beginning, confirm the following information:

  • Know the external IP address of the router on the network with the ELITEpro XC. This address is usually assigned by the ISP and is typically static. However, it may be dynamic, changing the address every other day. This can be easily found by someone inside the network by visiting www.whatsmyip.com.
  • Confirm that your router can be configured for port forwarding. Verify this with your router's documentation or by visiting the manufacturer's website.
  • Know the ELITEpro XC meter's IP address

Note: The ELITEpro XC itself does not need to be configured for Port Forwarding. All the configuration takes place on the router.

Each router manufacturer uses slightly different software. Check your router's documentation for specific directions on how to port forward with your router's software. Regardless of what software is on your router, you'll be required to enter the same general information.

  1. A text field where you can type the name of the application or service (in this case, it's helpful to reference the "ELITEpro XC" or the EXC's serial number).
  2. Incoming port the router should watch for
  3. The protocol to watch for: TCP or UDP. Choose "both" if you're unsure.
  4. The IP address that is the destination for this port's request (i.e., the EXC's IP address)
  5. Which port the request should be targeted to on the destination IP. The default is 3001.

Instructions

Here are the steps to connecting your networked ELITEpro XC from a different network:

  1. Obtain an internal IP address that is routable to an external IP address. If you are unsure of which IP address to use, check with your IT department.
  2. The external IP address gets forwarded to the internal IP address. For instance, the external IP address 212.45.67.89 may be forwarded to internal IP address 192.168.1.50.
  3. Determine which port should e used to connect to the ELITEpro XC. The default port is 3001. Check with your IT department if you are unsure.
  4. Using ELOG on the remote PC, go through the menu: Logger > Communication > Network Connect
  5. Enter the external IP address for the network you wish to connect to in the Network IP address box
  6. Enter the Port Number for the logger you wish to connect to
  7. Click OK
  8. You should now be connected to the remote ELITEpro XC
elitepro port forwarding
