Socomec Diris A20 Power Meter
Downloads:
datasheet manual



Socomec Diris A20 Power Meter

Model: 4825U200

A capable yet affordable panel-based, revenue grade class 0.5, power & energy meter for industrial applications. Monitors voltage, current, power, energy and harmonics. Pulse output and MODBUS RS485 available via plug-in expansion cards.

$477.00 USD

Availability: 1 in Stock

Modular multi function meter

The DIRIS A20 is a revenue grade class 0.5 multi-function meter for measuring electrical values in all low voltage networks. All the parameters can be configured and displayed on its front panel and measuring and timing functions used.

In addition DIRIS A20 has a function for correcting connection errors.


Key Features

  • Multi-measurement and metering
  • THD voltages and currents up to level 51
  • Programmable hour meter
  • Alarm management
  • RS485 Jbus/Modbus communication
  • Optional additional modules
  • 96 x 96 mm panel mount

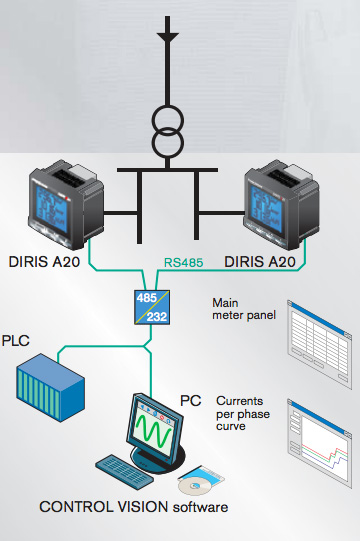

The Socomec Diris A20 Setup

Specifications

Current

  • instantaneous: I1, I2, I3, In
  • maximum average: I1, I2, I3, In

Voltages & frequency

  • instantaneous: U1, U2, U3, U12, U23, U31, F

Power

  • instantaneous: 3P, ΣP, 3Q, ΣQ, 3S, ΣS
  • maximum average: ΣP, ΣQ, ΣS

Power factor

  • instantaneous: 3PF, ΣPF

Metering

  • Active energy: + kWh
  • Reactive energy: + kvarh

Harmonic analysis

  • Total harmonic distortion (level 51)
    • Currents: thd I1, thd I2, thd I3
    • Phase-to-neutral voltage: thd U1, thd U2, thd U3
    • Phase to phase voltage: thd U12, thd U23, thd U31

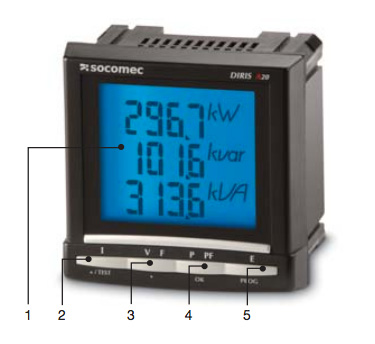

The Socomec Diris A20 Unit Overview

  1. Backlit LCD screen.
  2. Direct access key for currents (instantaneous and max. values), current THD and set up wiring correction.
  3. Direct access key for voltages, frequency and voltage THD.
  4. Pushbutton for active, reactive, and apparent power (instantaneous and max. values) and power factor
  5. Direct access key for energies and hour meter.
